Description
- Clamex S, a detachable connectors suitable for any Lamello biscuit joiner, screwed into an 8 mm groove
- Differentiation from standard furniture connectors due to minimal 6 mm tool opening
- No limitation of connection angle
- Join wood using Classic X or Top 21 power tool
- Detachable connection of furniture, shelf units, store fixtures, etc.
- Glueing aid for mitres and angle joints ranging from 30-180°

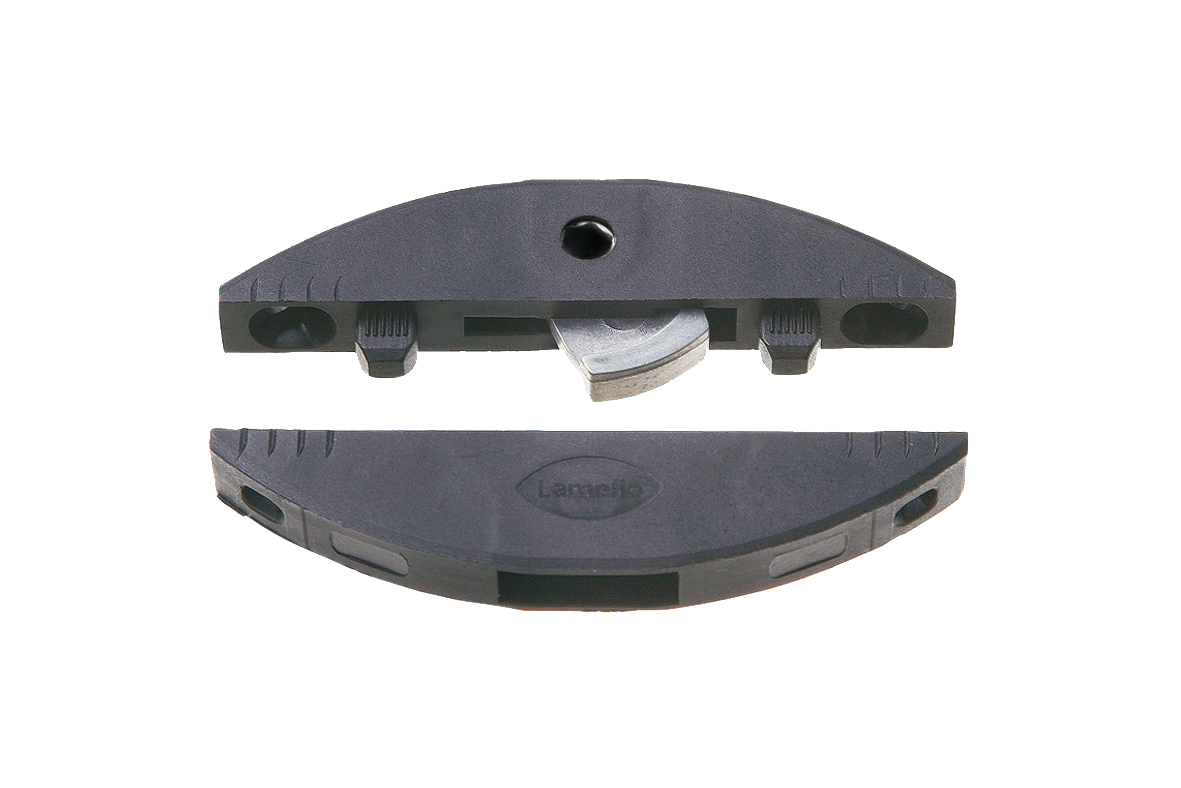

Clamex S
Clamex S is a knock down connector that is screwed into an 8 mm groove and connected via a lever. The 8 mm groove cutter for Clamex S can be used with any Lamello biscuit joiner.Clamex S possesses a minimal installation depth of 14.7 mm and can therefore be used in all wood materials from 16 mm.
- Practically wear-free knock down connector
- Detachable miter connector for 30-180° angles and all butt joints
- Minimal tool opening of just 6 mm
- Can be installed with any Lamello biscuit joiner
- Stackable for transport, despite pre-installed connectors
- High clamping force of 100 kg for glueing furniture at all angles
- Lateral tolerance for efficient installation using Classic X and Top 21 biscuit joiners
Clamex S can be used in the production of furniture, cabinets, displays or exhibit manufacturing.
The connector is a popular solution for open shelf units, large pieces of furniture and angled counters, while also being used as a general gluing aid. It is also frequently employed as an aesthetic, high-quality connection for premium products.
- Knock down connector for furniture, shelf units, kitchen manufacturing etc.
- Gluing aid for miters and unusual angles
- Connector for detachable elements in store fixtures and exhibit construction
- Powerful alternative to standard connecting fittings
- Rapid prototype construction before starting new product lines
- On-site adjustments and assembly
Size: 66 × 29 × 8 mm
Cutter: Ø 100 x 8 x 22
Shell Material: Fiberglass reinforced plastic
Lever Material: Zinc die-cast
Installation Tolerance: Longitudinal ± 1 mm
Tensile Strength:
Particle board ~ 800 N ≈ 180 lbf.
Tensile Strength:
Beech ~ 1300 N ≈ 292 lbf.
Cutter: Ø 100 x 8 x 22
Shell Material: Fiberglass reinforced plastic
Lever Material: Zinc die-cast
Installation Tolerance: Longitudinal ± 1 mm
Tensile Strength:
Particle board ~ 800 N ≈ 180 lbf.
Tensile Strength:
Beech ~ 1300 N ≈ 292 lbf.
Secure On-line Ordering for U.S. Only - No order is processed until final checkout.
![]() | Clamex S-18 Interlocking Connector with metal lever (18 pair, 1 marking jig torx key, 75 screws (RK 3 x 15 mm)) No. 145231 - $75.00 plus $5.00 shipping and handling | |
![]() | Clamex S-18 Interlocking Connector with metal lever (80 pair without screws) No. 145236 - $240.00 plus $5.00 shipping and handling | |
![]() | Clamex S-18 Interlocking Connector with metal lever (300 pair without screws) No. 145241 - $750.00 plus $10.00 shipping and handling | |
![]() | Clamex S Carbide Reversing Blades Cutter for 8 mm Groove No. 132108 - $247.00 plus $5.00 shipping and handling | |
![]() | Clamex S Drill jig for angles of 35 - 90 degrees including drill No. 125240 - $165.00 plus $5.00 shipping and handling | |

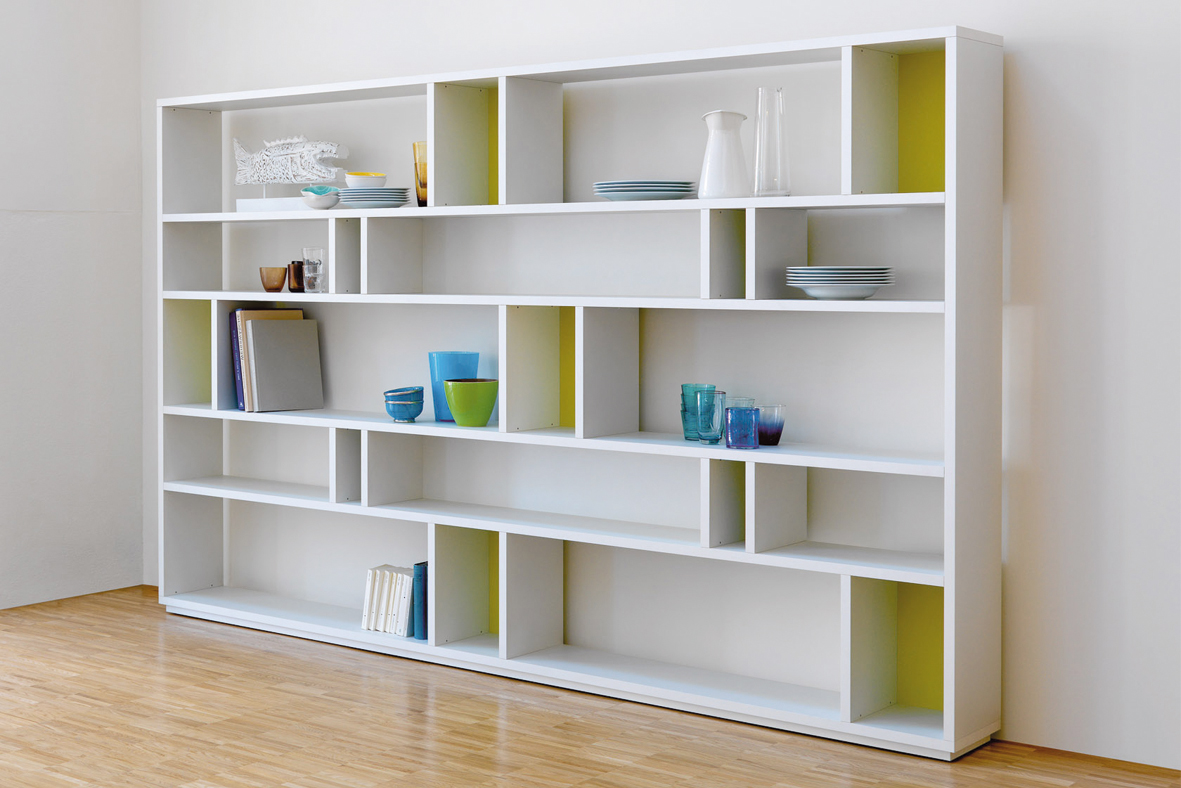

Clamex S Bookshelves
The connecting fitting is a popular solution for open shelf units.Clamex S Application

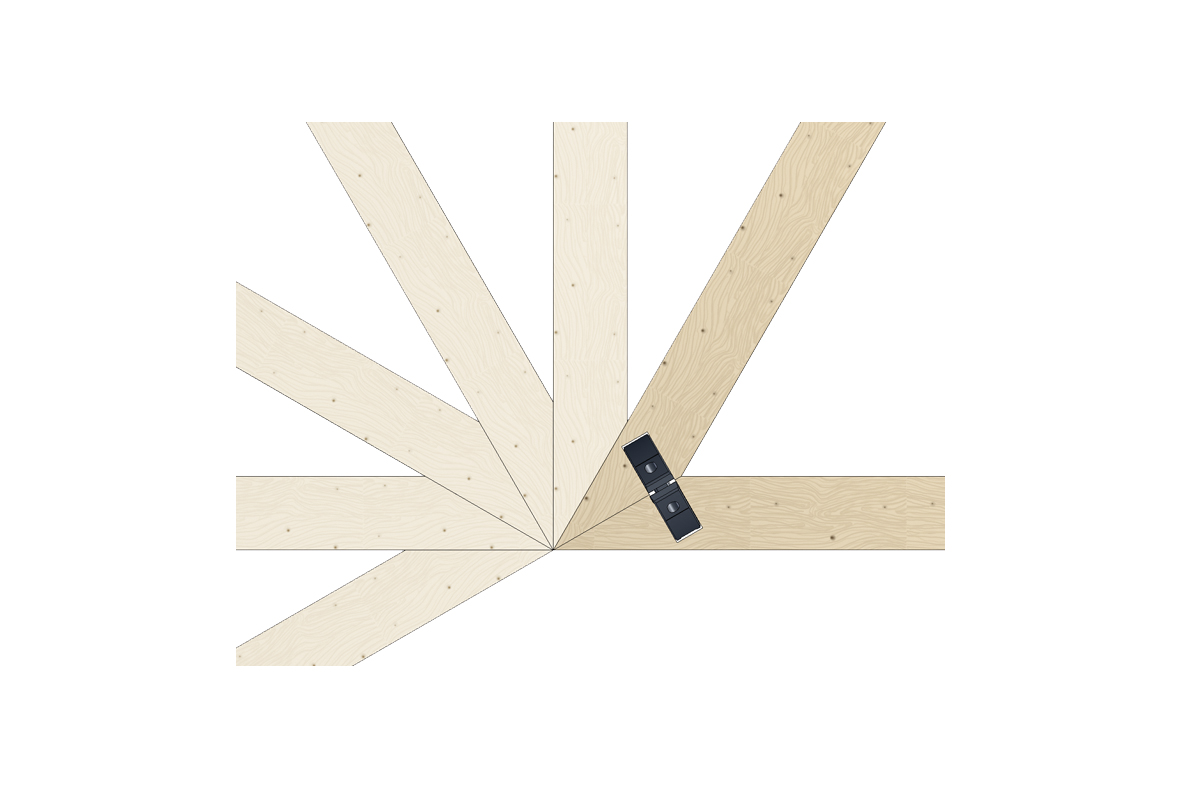

Detachable connection of furniture, shelf units, fitted wardrobes etc.Flexible angles

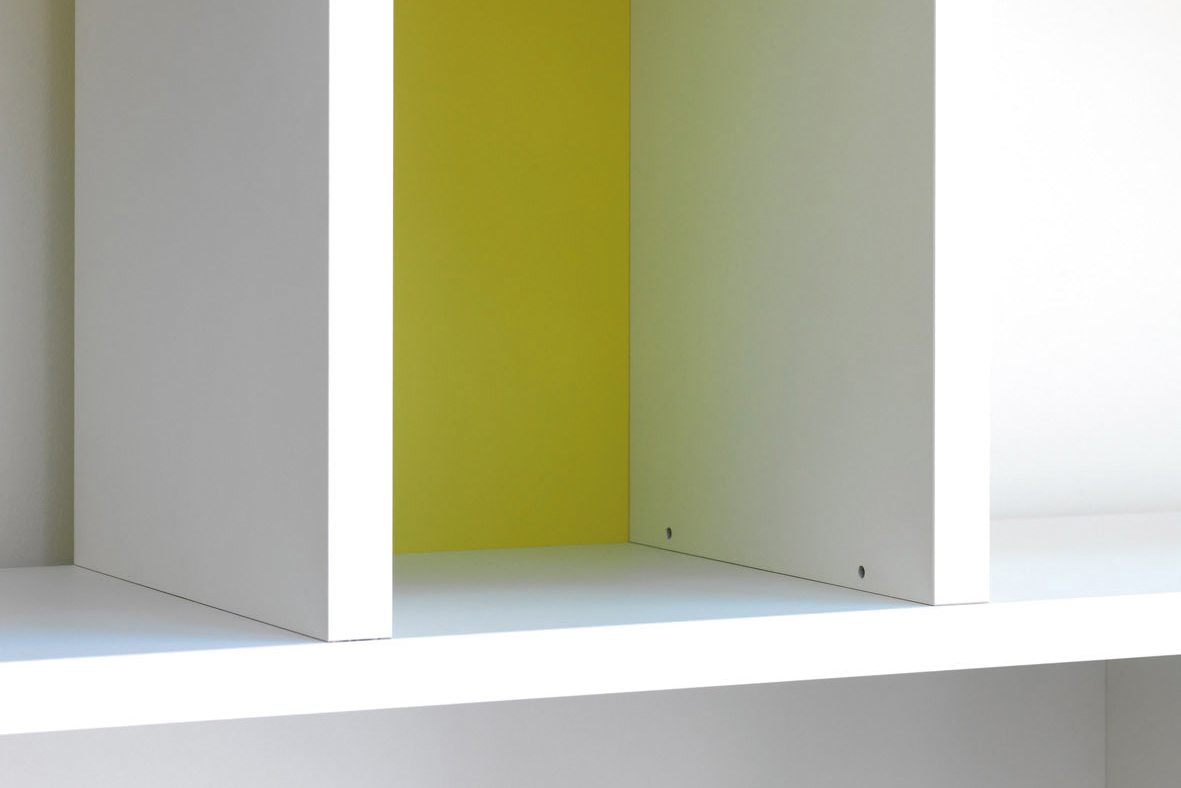

High clamping force of 100 kg for glueing furniture at all angles.Clamex S Connection

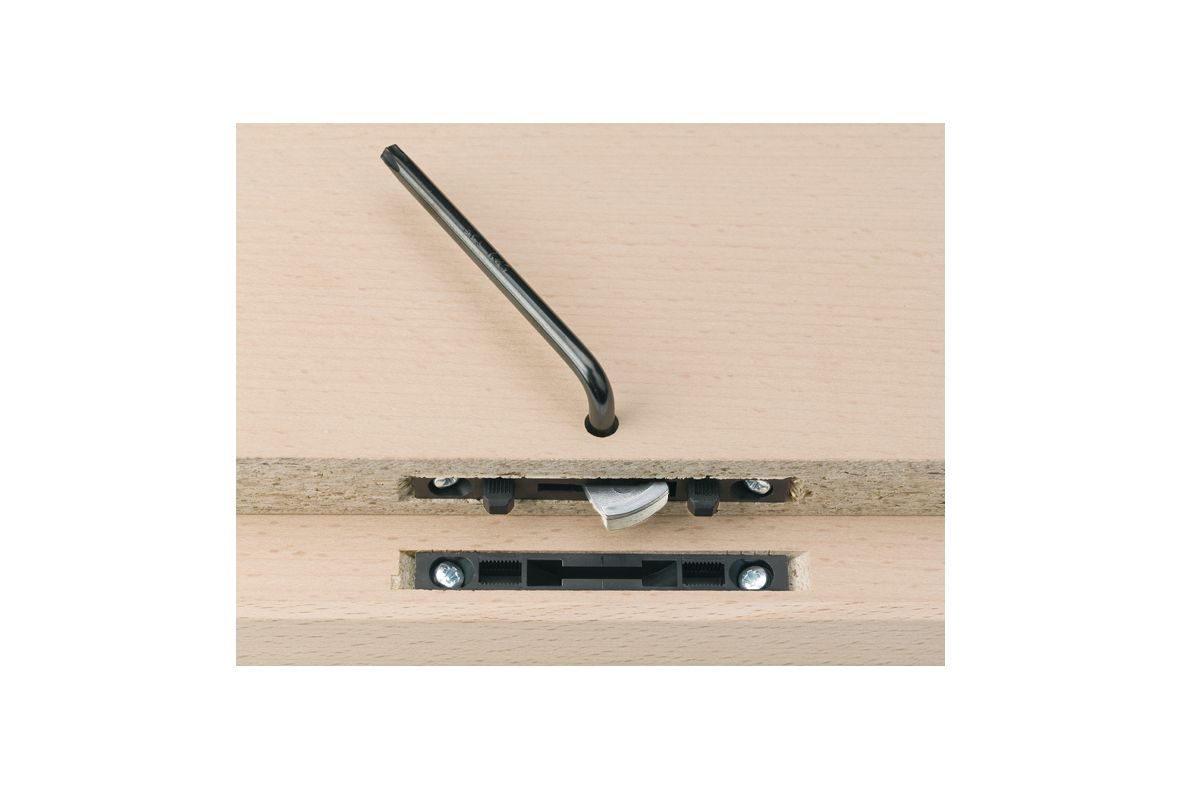

Employed as an aesthetic, high-quality connection for premium products.Clamex S Knock Down Fitting

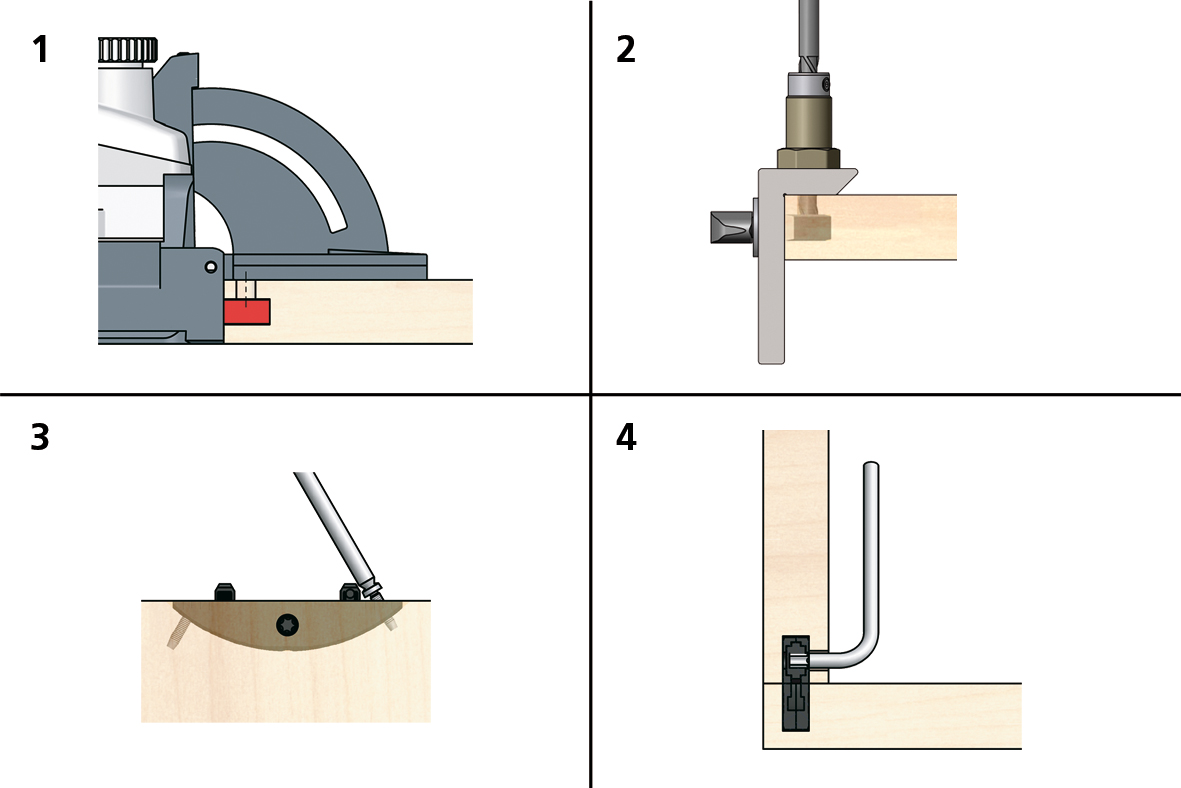

Clamex S is a knock down fitting that is screwed into an 8 mm groove and connected via a lever.Clamex S
Connecting fittings for panels from 16 mm
