New! Lamello Zeta P2 Cordless

Zeta P2 Cordless

NEW! Cordless version of the best-selling, Swiss-crafted biscuit joiner of the Lamello P-System.

$2,100.00

Cordless version offers excellent mobility for job site or large workpiece applications
Superior quality and precision
Fast machining of all P-System connector slots
Unique Integrated vertical mechanical drive
Can be used as a standard biscuit joiner for Lamello original biscuits

Cordless Kit without battery and charger available upon request.

Info Pack & Pricing

Brochure

Find a Dealer

Secure Online Ordering for U.S. Only - No order is processed until the final checkout.

Product Details

Description Features & Benefits What's Included Applications Specifications

Description

The Zeta P2 Cordless is the profile biscuit joiner for the P-System. It can be used to join components in solid wood, plywood, MDF, particleboard, plastics, solid surface, and more.

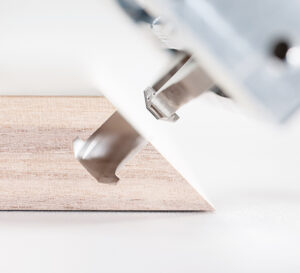

The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 cordless is the centerpiece of this profile biscuit joiner. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove. All P-System fittings are then manually inserted into this groove, ensuring a fast form-locking anchorage.

The Zeta P2 cordless can cut P-System grooves for connectors with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters.

Function
The vertical movement for the profile groove is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. The vertical mechanical drive combines process precision and reliability with a low-wear, fully mechanical construction.

The Zeta P2 cordless can also be employed as a standard biscuit joiner for original biscuits by deactivating the profile groove function and changing to a 4mm blade.

Features & Benefits

Features

Trademark P-System Vertical Mechanical Drive. The vertical mechanical drive consists of highly precise rotary parts supplied by Lamello. It creates an eddy current, driving the stroke movement.
P-System Anchorage
Tool-free anchoring of connectors, without adhesive or screws.
P-System Depth Adjuster
Extremely fast rotation to set different depths for the P-System joining elements: 10, 12, 14, 15 or 18.

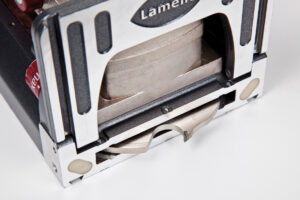

Use Zeta P2 Cordless for standard wooden biscuits by rotating the P-System depth adjuster to OFF to switch off the vertical mechanical drive. The 7 mm P-System cutter is replaced with the 4 mm groove cutter.

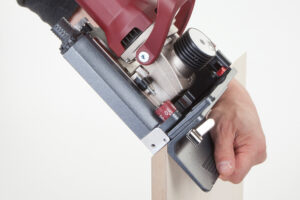

Swivelling Front Stop with Fixed Pivot Point
Join reliably with the cutter which is in the exact center between to two application surfaces
Multifunctional Stop Square
In addition to vertical stability resulting from the larger contact area, the stop square enables variable adjustment of the groove position, 0-50 mm.

Benefits

Extremely fast joining method using a power tool
Rapid, simple, and precise
Identical grooves on both work pieces, saving time by removing the need for depth adjustments and minimizing the risk of errors
Connector system with innovative profile groove technology greatly reduces labor time while also negating the need for additional fastening materials
5 different cutting depths for various connecting fittings
Also compatible with biscuits and other 4 mm fittings

What's Included

Applications

Fast permanent or detachable connections

Furniture and kitchen manufacturing, store fixtures, exhibit booth construction, installers, custom woodworking, and millwork

Ideal for woodshops without investing in expensive capital machinery

Fast gluing and clamping aid for a wide range of connections, including miters

Minimal setup time for different applications

On-site adjustments and assembly

For use with all wood materials and panels, as well as composite materials such as solid surfaces or HPL may be used with the P-System

Specifications

Videos

Recommended Products

Lamello P-System Connector Assortment
Basic - No. 145314 - $400.00 or Professional - No. 145312 - $830.00
