Versatility meets pedigree

The legend lives on, the name is a pledge

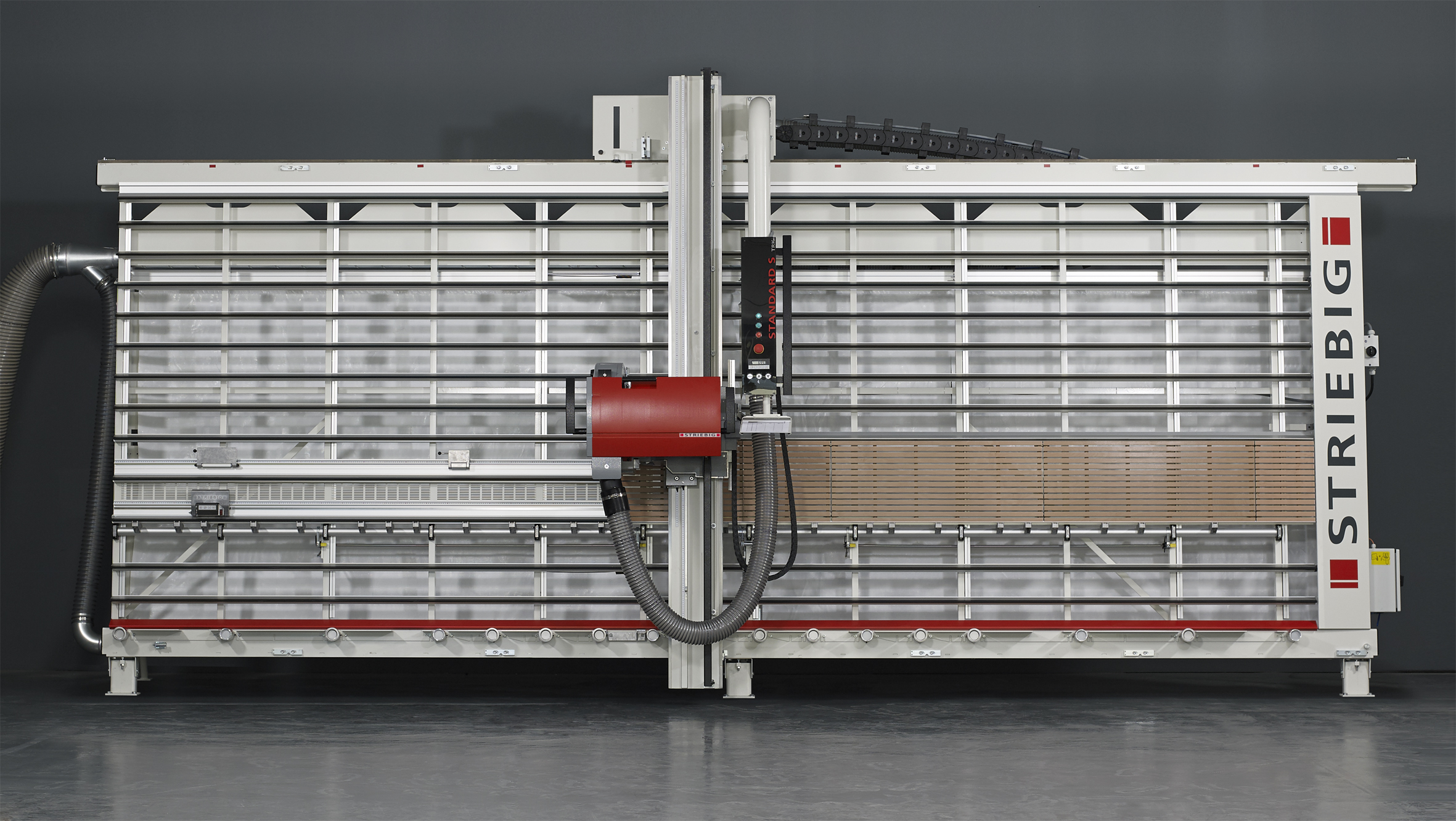

With the addition of the “Comfort” premium package to the S version, you get auto-locking support rollers, digital measuring for the Y-axis with motorized fine adjustment, pneumatic carriage clamping, and the laser cut line guide for horizontal cuts.
• Swiss made quality for accuracy and durability!
• 14’1” x 5’6” cut capacity (5’1” max. horizontal rip height)
• Very stable, all welded steel frame suitable for free-standing or wall-mount installation
• Heavy-duty panel support rollers with integral foot pedal braking system
• Convenient, sturdy, two-section mid-shelf with adjustable aluminum finger allows for comfortable working of small parts and ability to stage material on one side of the saw
• Snap-in small parts supports included (one pair)
• Automatic, mechanically shifting support grid with replaceable lath tips
• Main measuring channel with inches/metric scales and measuring stop
• Second measuring channel for repeat dimensions with one auxiliary stop
• Vertical cutting stations 40 inches on center (1meter optional)
• High efficiency dust system has added rear collection area with full-length bottom dust collection pipe
• 7-1/2 hp, 220/440V, 3-phase motor with electric brake
• 300mm saw blade for 3-1/8” cut depth
• Template bar with six stops for setting typical horizontal cuts
• Repeat rip device with roller follower
• Saw head plunging device for cross-cutting tall panels on taller frame sizes
Cut capacities: 14'1" W (17'4" optional) x 5'6" H; depth 3-1/8" (80mm)
Weight (approx.): 1650 lbs. (net), 2200 lbs. (gross)
Main Saw Blade: 300 mm dia., 30 mm bore
Electrical: 3 phase, 220V or 440V
Dust collection: 1000 cfm, 140 mm connection; choice of side
Floor Space: 18' 0"L (21'3" opt.) x 5'1"D x 8'7"H (machine only)
• VSA scoring saw unit with infinitely adjustable split-blade
• DMS X-axis digital measuring (for vertical cuts) w/fine adjustment, 4-station reference

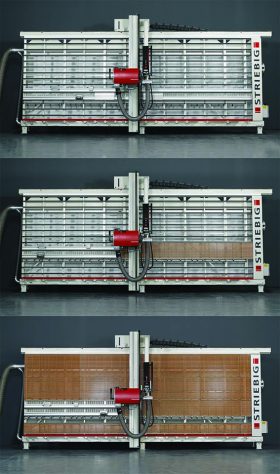

• *Wood small parts support area on right side 15" tall with sliding panel**
• *Full wood support grid (TRK1 like Evolution) including small parts support on right**
• *Pneumatic locking rollers in place of foot pedals (included in Comfort package below)
• *Laser line guide for setting horizontal cut (included in Comfort package below)
• *“Comfort Premium Package” including:

DMS-Y digital measuring in the Y-axis for horizontal cuts w/motorized fine adjustment

Automatic (pneumatic) locking rollers

Pneumatic carriage clamp to lock carriage at the push of a button

Laser line guide for setting horizontal cuts by eye

• WSG Angle Cutting Device with “unipoint” system and fine adjustment to 0.1 degree for angle cuts to 46 degrees. Wall-mount storage box included.
• *Dado grooving kit with special shroud and dial-adjustable depth control
• Adjustable dado cutter with carbide inserts, 8-15mm (5/16”- 9/16”)
• Taller 216 (or 224) frame for 7’1” (or 7’4”) vertical cut, (79.4” or 82.7” trim height)
• *Two-speed (half/full) motor (5.5 hp) with ProLock Easy-fix tool clamping system
• *Operating time Counter
• Document holder for convenient viewing of cut lists below control panel
• Center shelf fingers of fiber-reinforced plastic-easy sliding and gentle on fragile edges
• ProLock Easy-fix tool clamping system
• Spare scoring blade set with shims
• Spare scoring blade set- adjustable
• Scoring blade set- adjustable in PCD diamond for extra-long life
