Description
- Clamex S-20, a detachable connector suitable for any Lamello biscuit joiner, screwed into a 4 mm groove
- Nearly invisible with a minimal 6 mm tool opening
- Works in nearly all angles
- Use in very thin materials ≥ 8 mm
Application
- Detachable connection of furniture, shelf units, store fixtures, etc.
- Glueing aid for miters and angle joints ranging from 30-180°
Clamex S-20

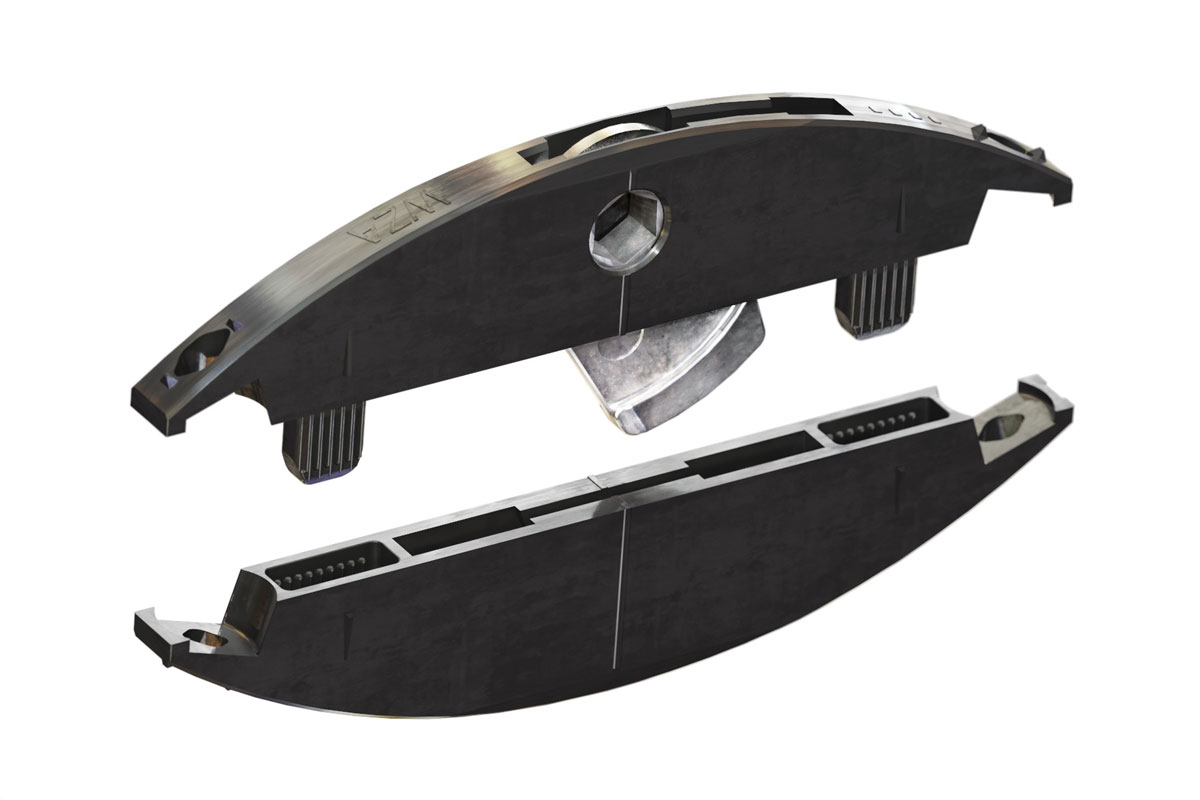

Clamex S-20 is a detachable Lamello system connector for use in materials as thin as 8mm and is fastened in the groove with screws. The 4 mm grooves may be created with any biscuit joiner. Clamex S-20 is joined by a cam lock and it requires no adhesive, enables aesthetic connections at all angles, and is ideal for fixed or detachable connections.
- Ready-to-assemble connector with minimal tool opening of only 6mm
- Detachable miter connector for 30-180° angles and all butt joints
- Can be installed with any biscuit joiner
- Stackable for transport with connectors pre-installed.
- High clamping force of up to 136lbs
Clamex S-20 can be used in the production of furniture, cabinets, displays or exhibit manufacturing.
- Knock down connector for furniture, shelf units, kitchen manufacturing etc.
- May be used in thin materials
- Gluing aid for miters and unusual angles
- Connector for detachable elements in store fixtures and exhibit construction
- Powerful alternative to standard connecting fittings
- Rapid prototype construction before starting new product lines
- On-site adjustments and assembly
Size: 59x12x3.9mm
Cutter: Ø 100 x 4 x 22
Shell Material: Fiberglass reinforced plastic
Lever Material: Zinc die-cast
Installation Tolerance: Longitudinal ± 1 mm/Radial ±0mm
Tensile Strength:
Particle board 107 lbs
Tensile Strength:
Beech 136 lbs
Cutter: Ø 100 x 4 x 22
Shell Material: Fiberglass reinforced plastic
Lever Material: Zinc die-cast
Installation Tolerance: Longitudinal ± 1 mm/Radial ±0mm
Tensile Strength:
Particle board 107 lbs
Tensile Strength:
Beech 136 lbs
Secure On-line Ordering for U.S. Only - No order is processed until final checkout.
*Available Fall of 2023
