Description
- Classic X is the original biscuit joiner from the inventor and world-leader in wood biscuit joinery
- The highly efficient, simple and accurate joining system for panels
- Multifunctional stop square, swivelling front stop with fixed pivot point and high-precision application surfaces
- Fixed or detachable connections with 10 different joining elements
- Furniture and kitchen manufacturing, shop fixtures, booth construction, installers
Classic X
Classic X is the mainstay biscuit joiner based on the tried-and-tested original from the inventor of the system and offers the perfect combination of speed and versatility. Features of the Classic X include the fully revised base plate and the slim yet powerful 780 W motor.Along with the fixed, self-clamping and detachable connectors and the Classic X, Lamello represents the most complete and versatile wood joining system.
Benefits of the Classic X biscuit joiner
- Base plate with improved visibility of the angle scale and the height setting
- The base plate, swivelling front stop and stop square are now flush on both sides for efficient positioning on the work piece
- Precision-machined guide and application surfaces for perfect fit of the work pieces
- Slim but powerful 780 W motor
- Multifunctional stop square for vertical stability as well as perfect miters due to the application on the outer surface for 22.5 and 45° angles
- A single power tool for 10 different connectors offering fixed and detachable connections
- No tool change required for 9 different connectors
- Lateral tolerance allows for faster working without positioning aids and stops
- Avoid errors when adjusting the cutting depth since both work pieces have the same groove depth
- Proven cutting principle with a disc cutter ensures that the grooves are always parallel and precise, even in the case of knots or rapid working
- The highly efficient, simple and accurate joining system for panels
- Thin work pieces measuring 8 or 10 mm may be joined at any angle
- Fixed connections of wood and panels as well as composite materials such as solid surfaces using biscuits of various sizes, the clamping element or the plastic element for solid surfaces
- Detachable connections using the Clamex S connector
- Self-clamping connections with the E20-L and E20-H elements
- Further use to cut grooves and expansion gaps as well as to mill out resin pockets
Power: 780 W
Voltage: 120 V
Speed: 10,000 minˉ¹
Cutter: Carbide-tipped cutter 100 x 4 x 22 mm
Teeth: 6 alternate teeth
Max. cutting depth: 20 mm
Weight: 6.8 lbs.
Voltage: 120 V
Speed: 10,000 minˉ¹
Cutter: Carbide-tipped cutter 100 x 4 x 22 mm
Teeth: 6 alternate teeth
Max. cutting depth: 20 mm
Weight: 6.8 lbs.
Secure On-line Ordering for U.S. Only - No order is processed until final checkout.
 |
Lamello Classic X - No. 101600 - $699.00
|
|
Classic X
The most efficient system to join panels.

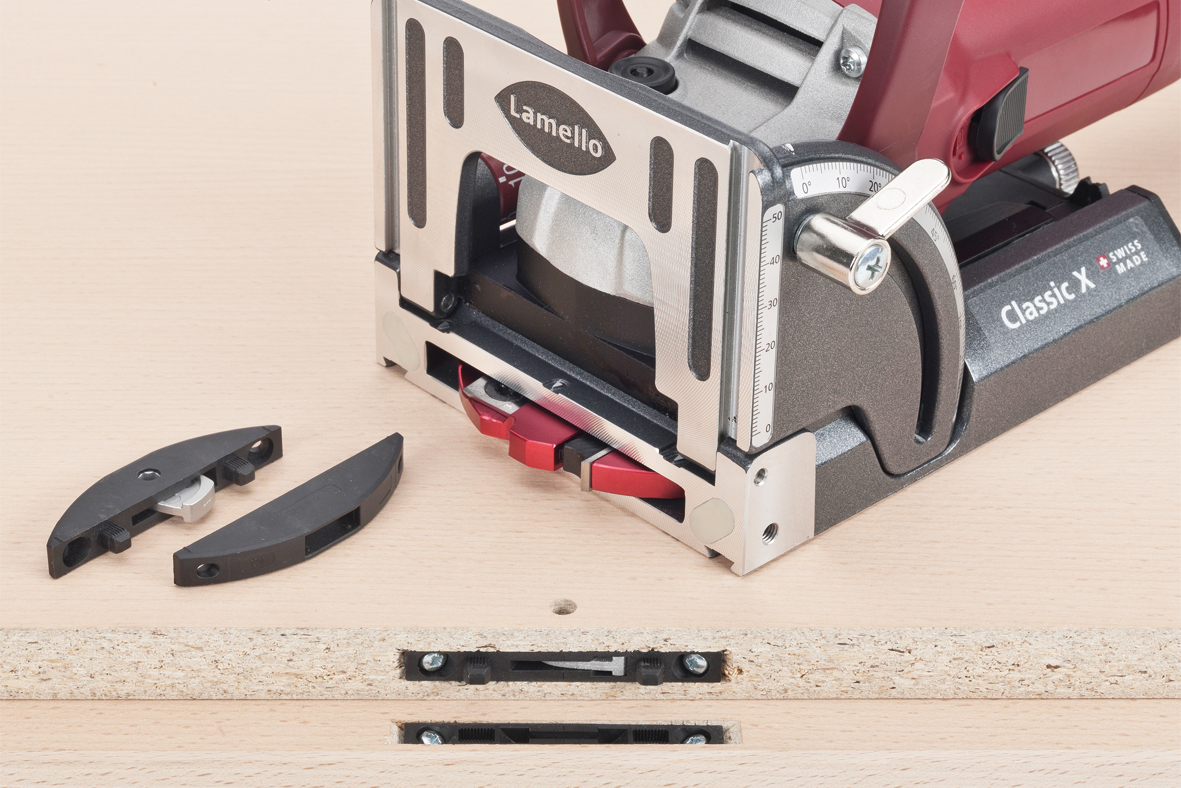

Classic X Application
Versatile Application with Clamex S-18 - detachable connector with screw insertion.

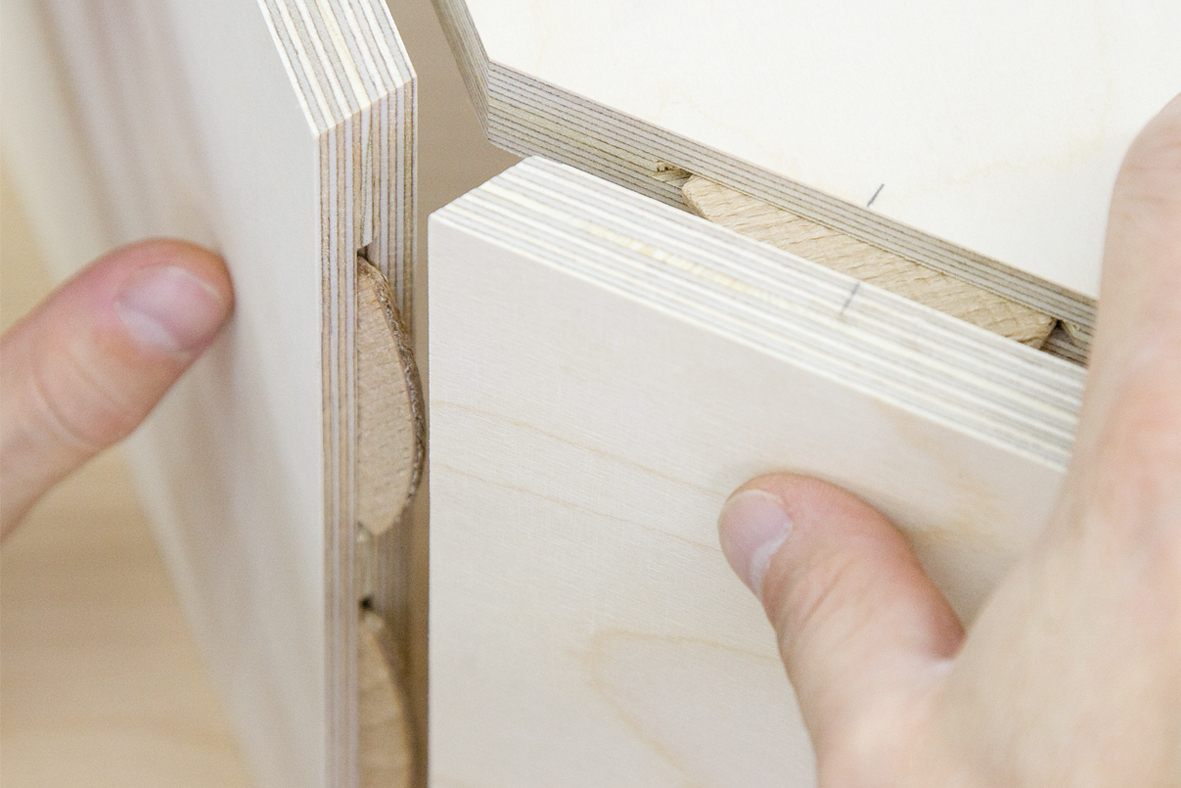

Classic X to Join Panels
The most efficient system to join panels.

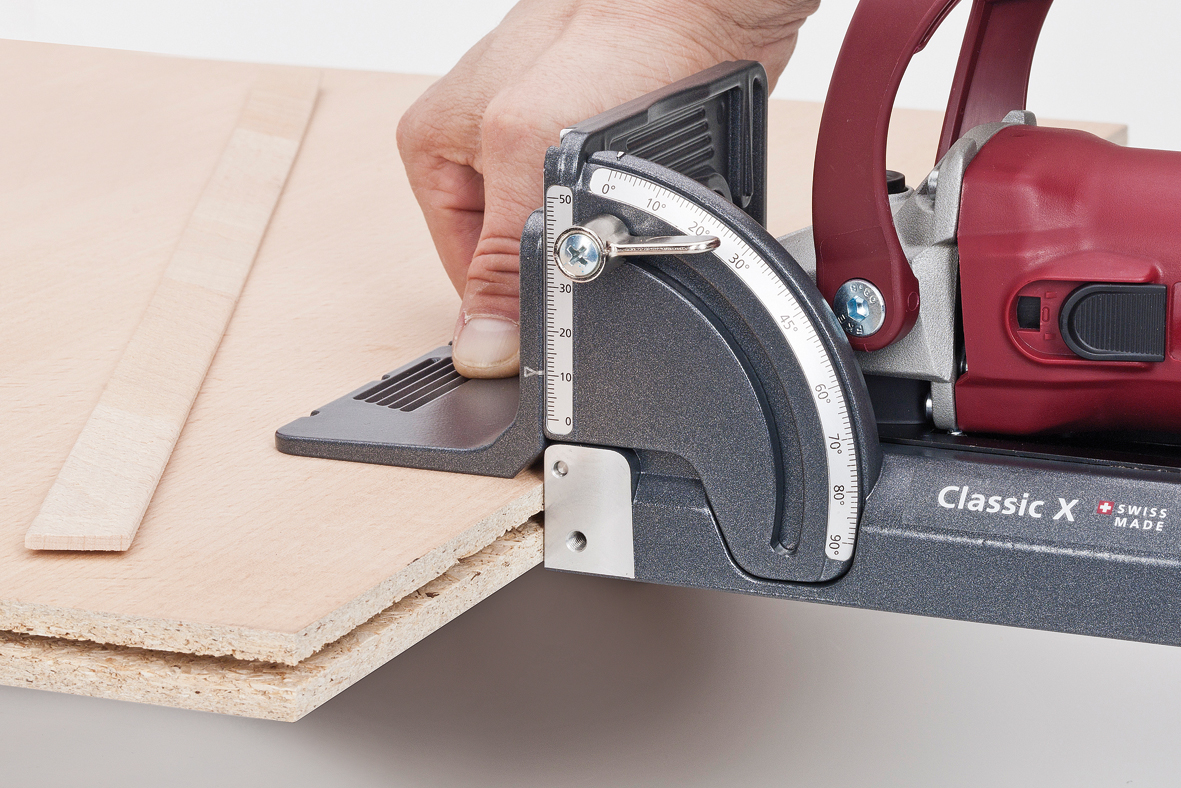

Classic X Grooves
Cut grooves for tongue and groove connections with the Standard carbide-tipped groove cutter 4 mm.
Classic X Swiveling Front
Exactly the same distance from both sides to the cutter = 8 mm. Allows alternating the application surface from the swiveling front view 1. or to the baseplate view 2., especially important when cutting thin dividing panel connections.
Classic X Fast and Economical
Perfect precision of mitres by applying on the outer surface for 22.5 and 45° angles.

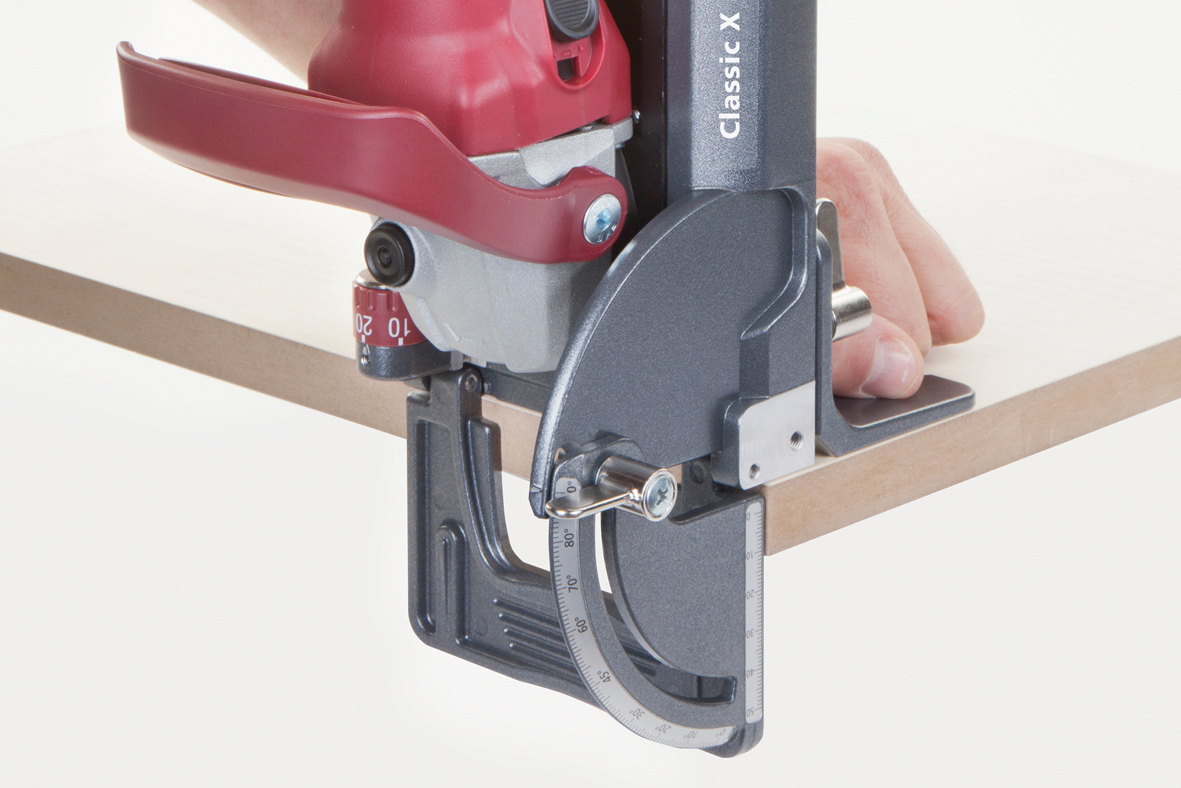

Classic X Multifunctional stop
Both sides flush surfaces on baseplate, swiveling front and stop square for efficient positioning of the biscuit joiner on the work piece’s outer edge. Vertical stability by attaching to the baseplate to increase the surface.
