Description
- Digital control with mini PLC allows electronic downfeed, timed spark out cycle, and automatic shut down.
- 8.5HP Grinding Motor
- Toothed belt drive system ensures smooth travel
- Head travel can be limited by stops to improve efficiency
- Stepless variable carriage speed from 2 to 20 m/min
- 120mm Electromagnetic Chuck tiltable from 0 to 90°
- Automatic electronic wheel downfeed for per pass and total downfeed
- Automatic shutdown of machine after timed sparkout cycle

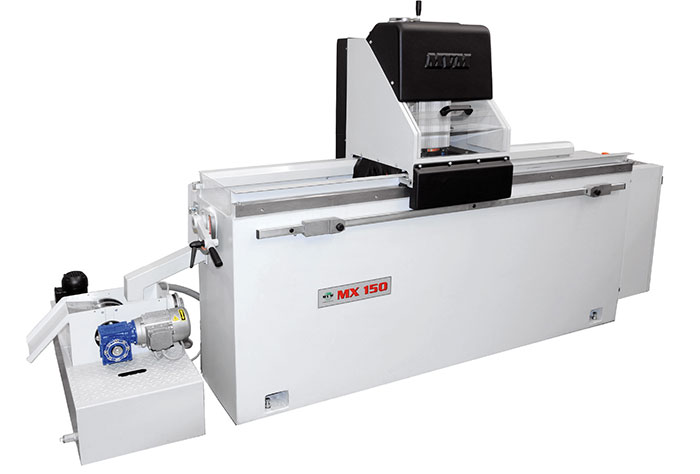

MVM MX up to 178" Automatic Knife Grinder
MX1000 For knives up to 1010mm (40”)
MX1500 For knives up to 1520mm (60”) (5’)
MX2000 For knives up to 2025mm (80”) (6.8’)
MX3000 For knives up to 3030mm (120”) (10’)
MX4500 For knives up to 4500mm (178”) (14.10’)
Standard Machine includes
MX1500 For knives up to 1520mm (60”) (5’)
MX2000 For knives up to 2025mm (80”) (6.8’)
MX3000 For knives up to 3030mm (120”) (10’)
MX4500 For knives up to 4500mm (178”) (14.10’)
Standard Machine includes
- 200mm (8”) Segment holder with 6 segments (flange also accepts cup wheels)
- Heavy flood coolant system with external tank
- Set of step blocks for stacking up to 4 planer knives (1/8” x 40 degree back angle)
MVM MX Optional Accessories
- Superfinish head with speed variator (Useful grinding length of auxiliary head is 300mm shorter than main head)
- 12 HP Motor Upgrade (Available on MX3000 + up only)
- Variable Grinding Wheel RPM
- Creep feed (down to .3m/min)
- Downfeed by workpiece sensing RTS-15 (Compensates for wheel wear)
- Grinding Wheel reversal by switch
- Single point diamond dressing attachment
- Super Hi-Power Mag Plate for grinding carbide inserts
- 14mm pole pitch brass sealed Magnetic chuck (priced per meter)
- Angular Divisor for tilting the chuck +/90°
- Rotating Cutting Edge references (for referencing off front of knife)
- Knife Extension Resting Blocks (Allow knives that are wider than the chuck to be reference from the back)
- Step blocks for stack-grinding planer knives (Must specify thickness and back angle)
- Clamping Device for disposable Terminus Tersa, Centrofix or Sinus blades
- Automatic paper roll filtration system
- Magnetic coolant cleaner with rotating discs
Maximum Knife Length: Varies from 1 to 3m (up to 178”)
Chuck to wheel clearance: 110mm (4.3”)
Grinding Motor: 8.5 HP
Grinding Wheel Diameter: 178mm (7”) or 200mm (8”)
Grinding Wheel Bore: 78mm
Chuck Width: 120mm (4.7”)
Voltage: 220V, 3Ph, 60Hz
Shipping Weight: Varies from 2000 lbs on up
Chuck to wheel clearance: 110mm (4.3”)
Grinding Motor: 8.5 HP
Grinding Wheel Diameter: 178mm (7”) or 200mm (8”)
Grinding Wheel Bore: 78mm
Chuck Width: 120mm (4.7”)
Voltage: 220V, 3Ph, 60Hz
Shipping Weight: Varies from 2000 lbs on up
