Description
  • Universal machine for straight and helical grinding
  • For tools under 10” diameter and 8” length
  • Precision workhead with Multiple pivot points, MT4 Taper, 24T Index Plate, and Fine rake angle adjustment
  • 1HP Grinding motor rotates 360 degrees
  • Trolley rides smoothly on hardened and ground cross roller bearings
  • Adjustable travel limit switches improve efficiency
  • Heavy Flood coolant system with external baffle tank

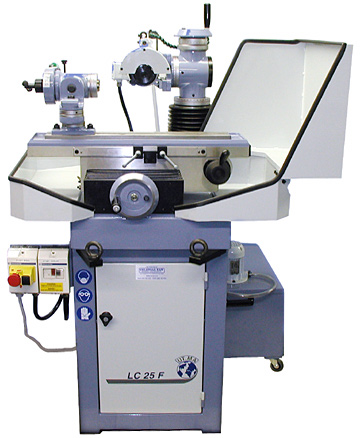

UTMA LC25 Manual Tool and Cutter Grinder

UTMA Model LC25-S Semi-Auto Tool & Cutter Grinder Left to Right (X-Axis Travel is automatic with variable speed)

Request Info & Pricing

UTMA LC25 Manual Tool & Cutter Grinder

Standard Machine includes:

  • High Splash Protection Shield
  • 1 wheel flange 20 x 60mm
LC25 Optional Accessories
  • Variable wheel speed via Electronic speed variator *useful when grinding router bits with smaller diamond or CBN wheels
  • Tailstock for support of large tools
  • Attachment for grinding chains
  • Attachment for grinding Circular Saws
  • Attachment for grinding boring bits
  • Attachment for grinding chisels and claw tools
  • Attachment for grinding planning and full cutterheads
  • Attachment for grinding planner knives (outside the head)
  • Feed finger rest for grinding O.D. of Helical tools
  • Upgrade to 1.5 HP twin spindle motor (includes additional wheel flanges)
  • LC25 Workhead sold Separately *MT4 Taper, Z=24, multiple pivot points
For Mounting Cutters
  • Chucking arbor 3/4” x 7” MT4
  • Reduction rings for 3/4” arbor (1, 1 1/8, 1 1/4, 1 1/2, 2”, 30mm, 40mm)
  • Chucking arbors MT4 x 180mm (7”) (specify size required)
  • Chucking arbors MT4 x 310mm (12”)(specify size required)
For Mounting Shank Tools
  • Collet Holder –MT4-16mm
  • Collet Wrench
  • ER40 Collets (5/8, 3/4, 1”, 19-18mm, 22mm)
  • Collet Extension (requires a 19-18mm collet)
  • ER20 Collets (1/4, 3/8, 1/2”)
Grinding Wheel Flanges
  • Wheel flange 20/60 (for cutters & saws)
  • Wheel flange 20/60 x 110mm extended
  • Wheel flange 20/35 (for router bits & spiral OD/Ends)
  • Wheel flange 13/25 for use with 2” wheels
Grinding Wheels for Cutters & Saws
  • 6” Diamond wheel 12A2 280 grit
  • 6” Borazon wheel 12A2 180 grit
Grinding Wheels for Router bits, spiral o.d./ends
  • 3” Diamond wheel 11V9 180 grit
  • 3” CBN wheel 11V9 150 grit
  • 2” Diamond wheel 11V9 180 grit
  • 2” CBN wheel 11V9 150 grit
Carbide Insert Package
  • 200mm Hi-Power Mag. Plate for grinding carbide inserts
    • Mag plate
  • 6” Diamond wheel 12A2
  • 2” Wheel flange 20/35
Maximum Table Travel: 200mm (8”)
Maximum Tool Diameter: 250mm (10”)
Grinding Motor: 1HP
Grinding Wheel Diameter: up to 150mm (6”)
Grinding Wheel Bore: 20mm
Voltage: 230 or 460V, 3Ph, 60Hz
Shipping Weight: 275kg (610 lbs)
