Description
- Fast, simple, easy set up
- Great for single tooth repair and able to do complete re-tip
- Central pivot point enables easy grinding of both sides of the tooth
- Handles a wide variety of tangential and radial clearances
- Flood coolant system

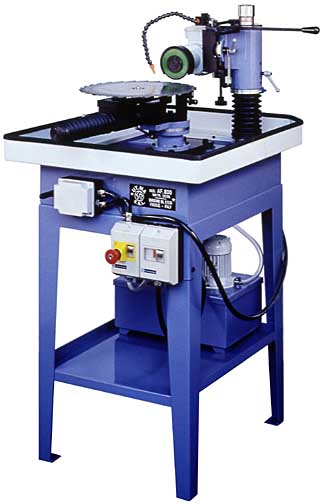

UTMA AF800 - Manual Single Side Grinder
Standard Machine includes
- Wheel flange
- Set of Centering bushings
AF800 Optional Accessories
- Upgrade grinding motor to 1 HP
Saw Blade Diameters: 120-800mm (4.75-32”) (2.5” option)
Radial Angle: -8 to +5 degrees
Grinding Motor: 1/2 HP
Kerf Thickness: 0 to 40mm
Grinding Wheel Diameter: 100mm (3.9”)
Grinding Wheel Bore: 32mm
Voltage: 220/440V, 3Ph, 60Hz
Shipping Weight: 105 kg (230 lbs)
Radial Angle: -8 to +5 degrees
Grinding Motor: 1/2 HP
Kerf Thickness: 0 to 40mm
Grinding Wheel Diameter: 100mm (3.9”)
Grinding Wheel Bore: 32mm
Voltage: 220/440V, 3Ph, 60Hz
Shipping Weight: 105 kg (230 lbs)
