Description
  • Profiles HSS moulder knives, carbide inserts, brazed cutters, L/R hand router bits, & raised panel cutters
  • Rigid frame construction supports a 3HP grinding motor
  • Grinds cutters up to 12” diameter and 10” length
  • Grinds carbide inserts against the cutting edge
  • Unlimited side clearance increments from 0 to 25°
  • Fully adjustable for back clearance angles from 0 to 45°

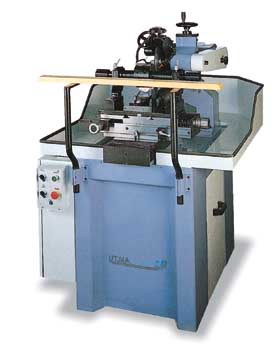

P20 Profile Knife Grinder

For cutting tools up to 12" in diameter with up to 14" knife lenght option.

Request Info & Pricing

UTMA P20 Profile Knife Grinder

Standard Machine includes:

  • Heavy Flood coolant system with manual paper roll filtration
  • 1 Wheel Flange 1 1/4” shaft
  • 3 Copy fingers of various diameters
P20 Optional Accessories
  • Variable speed grinding wheel spindle
  • Automatic wheel tilt by foot pedal for side clearances
  • HSS Manual Dressing attachment
  • Single knife holder (For cutting off HSS Knives and Carbide STB)
  • Raised Panel Cutter Rest
  • Router Bit profiling attachment with 12T Index plate
  • Carbide Insert Attachment (Includes one clamping fixture For profiling carbide inserts)
  • 14” Grinding Length Option (upgrade to P30)
  • Central Lubrication System for X & Y axis (manual)
For Mounting HSS Moulding Knives & Brazed Cutters
  • 3/4” Chucking Arbor with handwheel and spacer rings
  • 1 13/16” Chucking Arbor with handwheel and spacer rings
  • Custom Chucking Arbors for P20 any other size
  • Hardened Reduction Ring available for 3/4” arbor (1, 1 1/8, 1 1/4, 1 1/2, 2”, 30mm, 40mm)
    • Other Accessories
    • ER40 Collets for router bit attachment (1/4, 1/2, 5/8, 19-18mm, 3/4, 1”)
    • Insert Clamping Fixtures for Carbide insert attachment
    • Double Ended Copy Finger (2 & 3 mm)
    • Double Ended Copy Finger (4 & 6 mm)
    • Single Ended Flat Copy Finger (3mm)
    • Single Ended Pointed Copy Finger
    Template Assistance To have templates made for you or to buy a template maker and make your own templates, contact CNC Technology at: http://www.templatemakers.com
Maximum Tool Length: 250mm (10”) 14” optional
Maximum Tool Diameter: 300mm (12”)
Grinding Motor: 3 HP
Side Clearance: 0 to 25 degree
Grinding Wheel Diameter: 250mm (10”) or under
Grinding Wheel Bore: 1 1/4"
Voltage: 220/440V, 3Ph, 60Hz
Shipping Weight: 950 lbs
UTMA P20 Manual Profile Grinder for Professional Tool Makers
