Description
- Automatic head travel (11 m/min)
- Automatic wheel downfeed can be set for per pass and total downfeed
- Grinding Chuck tiltable 0 to 90 degrees
- Grinding head tiltable +5 to –30 degrees
- Coolant system with static magnetic filter in bed
- Mechanical T-Groove chuck for stack grinding of knives with step blocks
- Head travels on hardened and ground replaceable wear strips

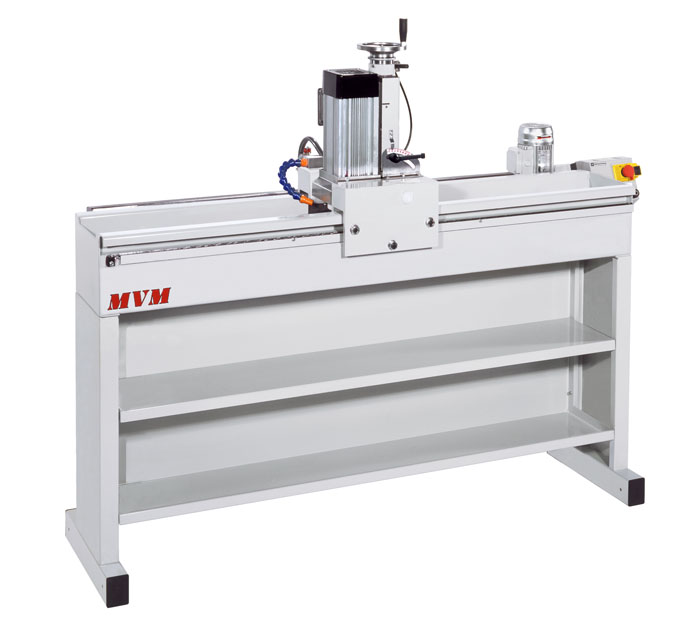

MVM ZX 40" or 48" Automatic Knife Grinder
Standard Machine includes
- Heavy Duty machine stand
- One 125mm (5”) vitrified cup wheel
- One set of blade clamps
- Set of Step Blocks for stacking up to 4 planer knives (1/8” x 40 degree back angle)
MVM ZX 1000 Optional Accessories
- 40" or 48" Magnetic Chuck (no T-slot)
- Upgrade to 3.5HP & 6” Wheel (20mm bore)
- Variable Carriage Speed (4 to 11 m/min)
- Stops with sensors to limit the carriage travel
- Step Blocks for stacking up to 4 planer knives (must specify knife thickness and back angle)
- T-slot Jig (required for stack grinding or magnetic chuck)
- Knife Extension resting blocks (allow knives that are wider than the chuck to be referenced from the back)
- External Coolant Tank and Pump (Standard machine uses the carriage bed as a coolant tank)
- We have many customers running their machines on 220V house power in their garages or barns using 5HP Rotary Phase Converter (no loss in HP)
Maximum Knife Length: 1010mm (40”) or 1230mm (48")
Chuck to wheel clearance: 30mm (1.2”)
Grinding Motor: 2 HP or 3.5 HP
Grinding Wheel Diameter: 125mm (5 “) or 6"
Grinding Wheel Bore: 16mm (20mm on the 6”)
Chuck Width: 100mm (3.9”)
Voltage: 220V, 3Ph, 60Hz
Shipping Weight: 250kg (550 lbs) - More for 48" and options
