Description
- 25HP Standard Grinding Motor (35hp optional)
- Automatic grinding cycles programmable by Siemens PLC with memory
- Track belt drive system ensures smooth travel
- Carriage travels on lubricated Turcite pads gliding on protected replaceable wear strips ensuring minimal vibration
- Variable carriage speed (1 to 30 m/min)
- 150mm Permanent On/Off Magnetic Chuck with 24mm Pole Pitch
- Rapid Wheel downfeed during setup
- External bafold coolant system with 3 coolant delivery lines (one running through the center of the grinding spindle)

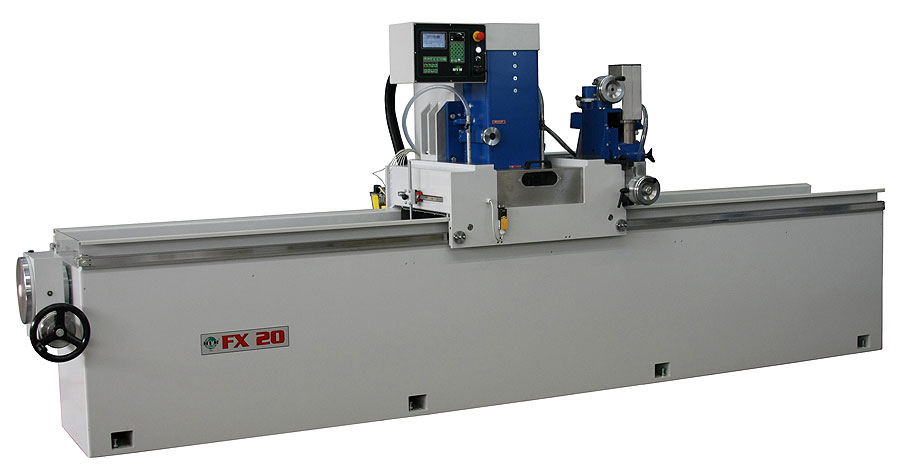

MVM FX 20 w/25 or 35hp PLC Knife & Surface Grinder
FX20/1500 For knives up to 1525mm (60”)
FX20/2100 For knives up to 2150mm (84”)
FX20/2500 For knives up to 2600mm (102”)
FX20/3100 For knives up to 3225mm (127”)
FX20/3600 For knives up to 3675mm (144”)
FX20/4100 For knives up to 4125mm (162”)
FX20/5100 For knives up to 5220mm (204”)
FX20/6100 For knives up to 6100mm (240”)
FX20/7100 For knives up to 7175mm (282”)
Longer lengths upon request
Standard Machine includes:
FX20/2100 For knives up to 2150mm (84”)
FX20/2500 For knives up to 2600mm (102”)
FX20/3100 For knives up to 3225mm (127”)
FX20/3600 For knives up to 3675mm (144”)
FX20/4100 For knives up to 4125mm (162”)
FX20/5100 For knives up to 5220mm (204”)
FX20/6100 For knives up to 6100mm (240”)
FX20/7100 For knives up to 7175mm (282”)
Longer lengths upon request
Standard Machine includes:
- 200mm Segment holder and set of 6 vitrified grinding segments
- Angular Geer Box Divisor for tilting grinding chuck +/- 90°
- Automatic Lubrication System
- Quick wheel attachment system and reversal of wheel rotation
- Lateral Pads with grease fittings
- Sprayer for cleaning parts
MVM FX20 Surface Grinding & Automation Options
- Robotic Loader
- Automatic approach of grinding wheel with wheel wear compensation (Laser measuring system useful for any application, requires PLC magnet control)
- Automatic approach of grinding wheel to the workpiece (Electronic sensing system useful for HSS applications)
- Downfeed by workpiece sensing RTS-15 (used to compensate for wheel wear during surface grinding)
- 6HP Universal Auxiliary head with auto-downfeed
- Automatic hydraulic tilting of the Grinding Head
- Doctor blade mechanical gang clamping device for gang grinding up to 24 blades at a time (assumes blades are 1mm thick x up to 120mm tall)
- Motorized Magnetic Chuck Rotation controlled by PLC
- Wider rotating permanent magnetic chuck up to 300mm wide
- High Power 14mm pole pitch brass sealed Magnetic chuck up to 300mm wide
- Variable Grinding Wheel RPM (18 to 33 m/sec)
- Slow carriage speed (creep feed down to .3 m/min)
- 35HP Grinding Motor
- Manual Edge reference bar (priced per meter)
- Rotating Cutting Edge references
- Free standing Electrical Cabinet (For setting machine up close to a wall)
- Automatic paper roll filtration system
- Manual paper roll filtration system
- Magnetic coolant cleaner with rotating discs
- Additional water pump for high pressure jet
- Mist Extraction System
- Single point diamond dressing attachment
- Cup wheel flange for 200-250mm abrasive & CBN wheels
- Ring wheel flange for 250mm ring wheels (bolt or glue in)
Maximum Knife Length: Virtually Unlimited upon request
Chuck to wheel clearance: 150mm (6”)
Grinding Motor: 25 HP (35hp optional)
Grinding Wheel Diameter: 250mm (10“)
Grinding Wheel Bore: 127mm
Chuck Width: 150mm (6”)
Voltage: 220V, 3Ph, 60Hz
Shipping Weight: Varies from 4900 lbs on up
Chuck to wheel clearance: 150mm (6”)
Grinding Motor: 25 HP (35hp optional)
Grinding Wheel Diameter: 250mm (10“)
Grinding Wheel Bore: 127mm
Chuck Width: 150mm (6”)
Voltage: 220V, 3Ph, 60Hz
Shipping Weight: Varies from 4900 lbs on up
