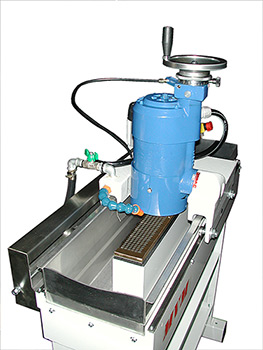

BM 400
- Dedicated Insert Sharpener
- Fixed 16" Long Chuck
- Collant in Chuck Bed
- Fixed Carriage Speed
- Economic option recommended for shops grinding up to 100 inserts/wk

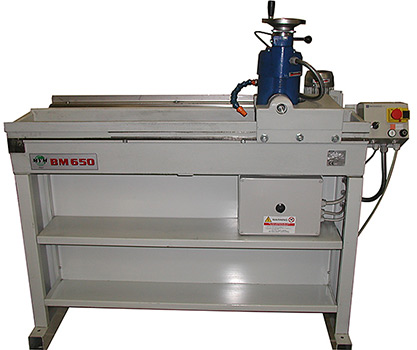

BMX 650
- Sharpen Inserts or Planer/Joiner Knives
- TILTABLE 26" Long Chuck
- External Cooler System for Easy Cleaning
- Variable Carriage Speed with Adjustable Travel Limits
- Flexible option for shops grinding up to 200 inserts/wk and some planer knives- *For over 200/wk we recommend a PX1000
Features:
• For sharpening inserts by surface grinding• Systems work with carbide or alloy inserts
• For profile and straight inserts of varying dimensions
• For mounting on knife grinders, cutter grinders or surface grinders
• Can be mounted onto mechanical or magnetic grinding machine tables
• Chuck maintains perfect parallelism with the grinding machines table
• Multiple holders can be mounted on the same machine increasing output and making for extremely strong magnetic surfaces.
For Carbide Inserts:
• 200mm Super Hi-Power Mag Plate
• 400mm Super Hi-Power Mag Plate
• 600mm Super Hi-Power Mag Plate
*Quantity to be ground depends on insert dimensions. Plate dimensions are 200, 400, or 600mm x 70 x 20mm
Note: Not all inserts can be safely sharpened. It is the sole responsibility of the user to contact the individual insert manufacturer to get information on whether or not the inserts can be safely sharpened and if yes, what is the minimum thickness to which the insert can be safely ground.
