Description
- Automatic tool and cutter grinder
- Straight Cutter grinding
- Helical tool - external grinding
- Helical tool - gullet grinding
- Coolant tank with paper filter
- Electronic handwheel for accurate positioning of the selected axis.
- Machine is set for straight oil coolant
- PC control panel with Windows software and menu driven program.
- Free software with ISO code.

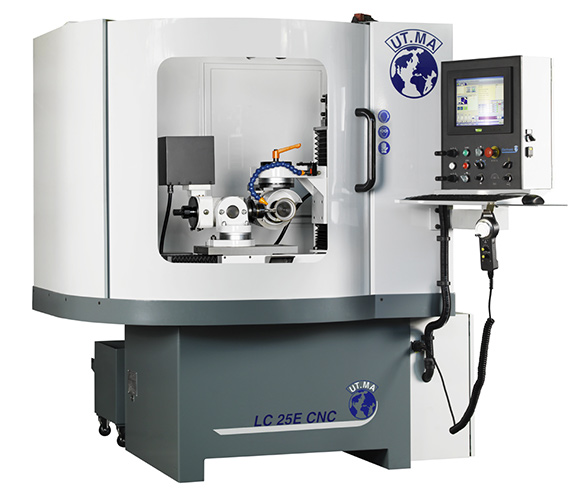

UTMA LC25 E CNC Numeric Control Grinder
The simple and cost-effective solution for the sharpening of linear cutters, bits and tools used in the woodworking or machining sectors.
UTMA LC25 E CNC Automatic Tool & Cutter Grinder
Standard Machine includes:
- High Splash Protection Shield
- 1 wheel flange 20 x 60mm
LC25 E CNC Optional Accessories
- Extraction system (centrifugal or electrostatic)
- Coolant tank with automatic paper filter
- Probe technology to teach-in the helix
Maximum Table Travel: 260mm
Grinding Motor: 1HP
Grinding Wheel Diameter: up to 175mm
Shipping Weight: 1000kg
Grinding Motor: 1HP
Grinding Wheel Diameter: up to 175mm
Shipping Weight: 1000kg
