Description
- Two 1 HP Grinding motors
- Great for single tooth repair and complete re-tip
- Mechanical Cam-lock Blade Clamping
- Quick setup of blade thickness, tangential clearance and +or- Radial clearance angles
- Needle Bearing slide system riding on hardened ways
- Hook Angle Guide provides added blade Support

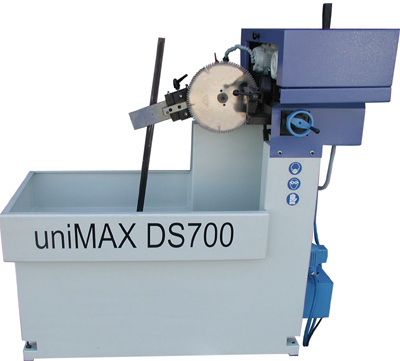

UniMAX DS700 Manual Dual Side
Standard Machine includes
- Heavy Flood Coolant system
- Set of saw bushings
DS700 Options
- Upgrade to 40” (1000mm) Maximum Blade Diameter
Blade Diameters: 4 – 28 inch
Tooth Pitch: 7 to 100mm
Radial Clearance Angles: -5 to +3 degrees
Tangential Clearance Angles: 0 to 4 degrees
Grinding wheel Specs: 4” x 25mm
Voltage: 220/440V, 3Ph, 60Hz
Shipping Weight: 530 lbs
Tooth Pitch: 7 to 100mm
Radial Clearance Angles: -5 to +3 degrees
Tangential Clearance Angles: 0 to 4 degrees
Grinding wheel Specs: 4” x 25mm
Voltage: 220/440V, 3Ph, 60Hz
Shipping Weight: 530 lbs
