Description
- Top 21's Step Management System (SMS) uses a machined dial knob to micro-adjust the height of the cutter in 0.1 mm increments over a total range of 4 mm
- The highly efficient, simple and accurate joining system for panels

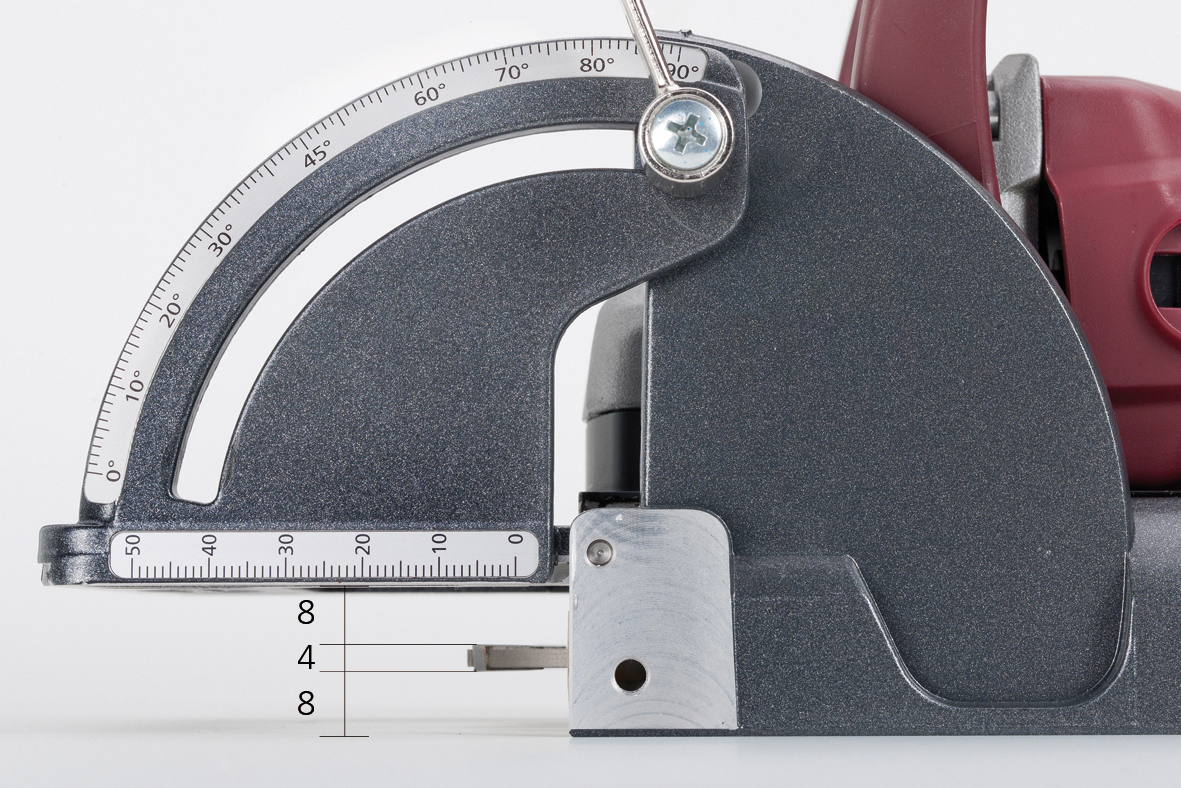

- Multifunctional stop square, swiveling front stop with fixed pivot point and high-precision application surfaces
- Fixed or detachable connections with 10 different joining elements
- Furniture and kitchen manufacturing, shop fixtures, booth construction, installers
Top 21
Top 21 is the premium biscuit joiner from Lamello with height-adjustable cutter based on the tried-and-tested original from the inventor of the system. With the fixed, self-clamping and detachable connecting fittings, Lamello's products represent the most complete and versatile wood joining system around.- Unique rotating height adjustment to set the cutting position in 0.1 mm intervals, totalling in 4 mm
- Powerful, electronically controlled 1050 W motor with soft start, constant speed, restart and overload protection
- New base plate generation with improved visibility of the angle scale and height adjustment as well as new application surfaces left and right for efficient positioning on the work piece
- Precision-machined guide and application surfaces for perfect fit of work pieces
- Multifunctional stop square for vertical stability as well as perfect mitres due to the application on the outer surface for 22.5 and 45° angles
- The highly efficient, simple and accurate joining system for panels
- Adjustment of groove position to centre of work piece

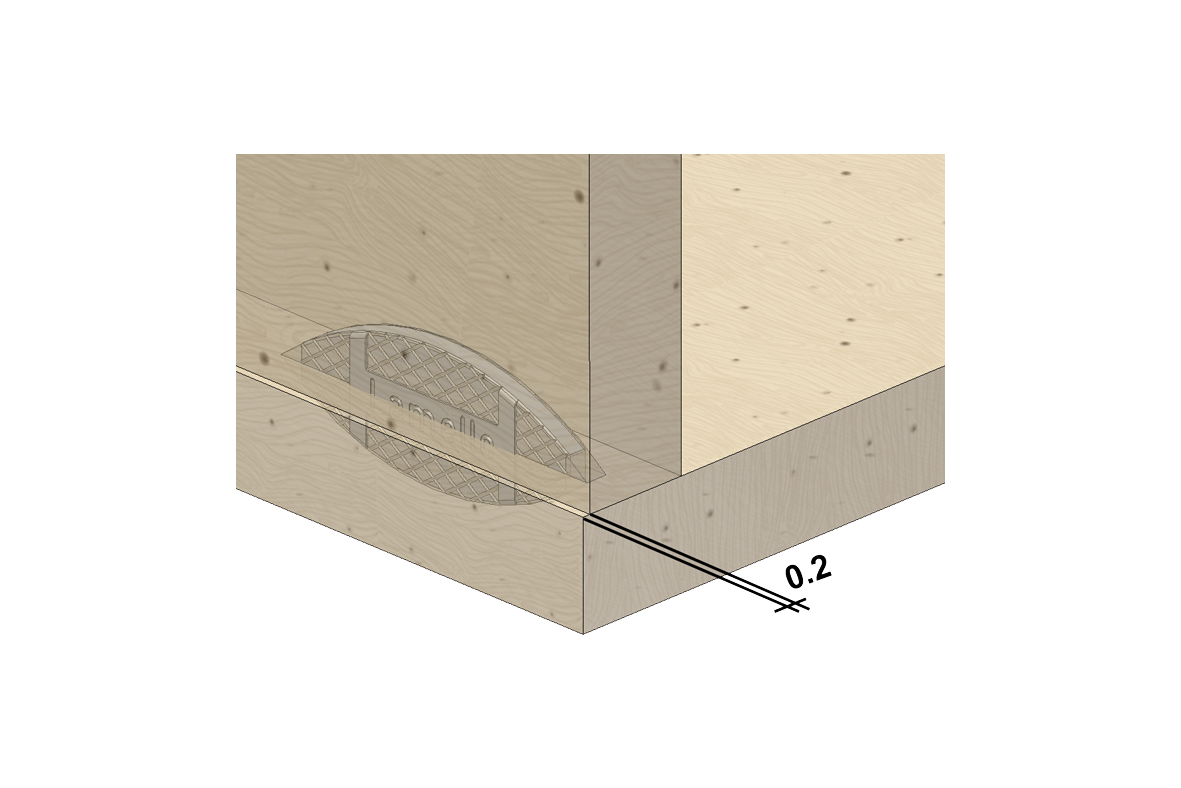

- Easy cutting of connections with offsets
- 2 x 4 mm double cuts for Lamello Clamex S
- Cutting of 8–12 mm expansion gaps, adjustable in 0.1 mm increments
- Fixed connections of wood and panels as well as composite materials such as solid surfaces using biscuits of various sizes, the clamping element or the plastic element for solid surfaces
- Detachable connections using the Clamex S connector
- Self-clamping connections with the E20-L and E20-H elements
- Further use to cut grooves and expansion gaps as well as to mill out resin pockets
Power: 1,050 W
Voltage: 120 V
Speed: 9'000 minˉ¹
Cutter: Carbide-tipped cutter with groove, 100 x 4 x 22 mm
Teeth: 6, with scoring teeth
Max. cutting depth: 20 mm
Weight: 7.7lbs.
Voltage: 120 V
Speed: 9'000 minˉ¹
Cutter: Carbide-tipped cutter with groove, 100 x 4 x 22 mm
Teeth: 6, with scoring teeth
Max. cutting depth: 20 mm
Weight: 7.7lbs.
Secure On-line Ordering for U.S. Only - No order is processed until final checkout.
 | Lamello Top 21 - No. 101500S - $1,400.00 with powerful 800-Watt Electronic Smart Motor - See Current Promotion! | |

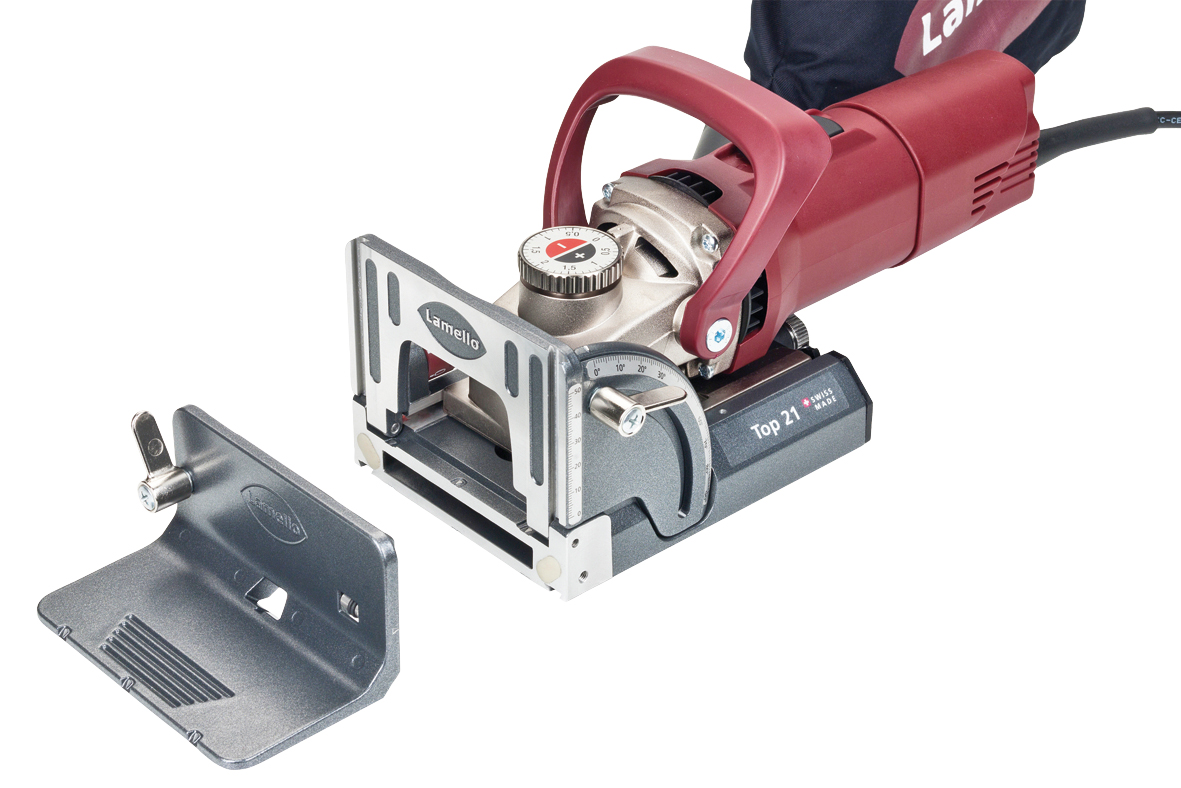

Top 21 – The Original Biscuit Joiner
Machine with carbide tipped groove cutter
Top 21
Original biscuit joiner with height-adjustable cutter
Top 21 Cuts
Choose Lamello for precision, reliability, longevity and many additional applications. Cuts for expansion gaps.

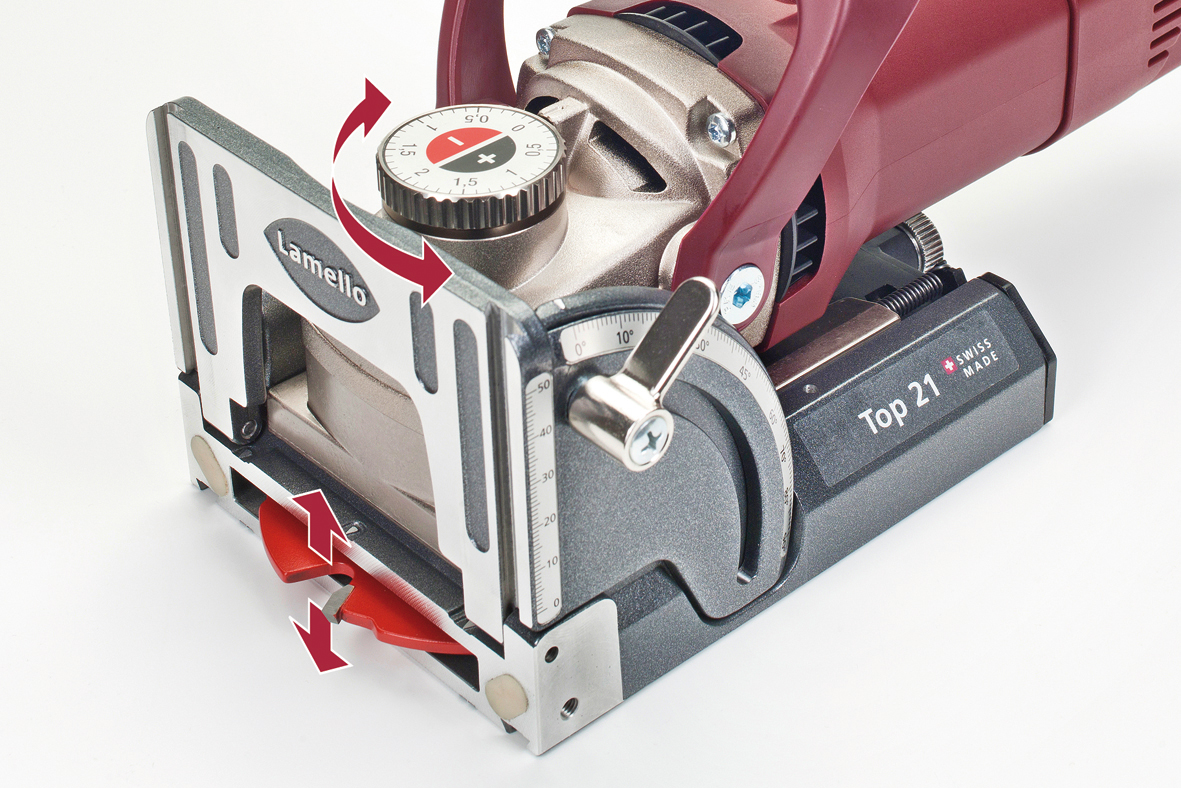

Top 21 Adjustable Cutter
Top 21 is the top biscuit joiner with height-adjustable cutter from the inventor of the system and provider of the complete solution.
Top 21 Grooves
Proven cutting principle with a disc cutter ensures that the grooves are always parallel and precise, even in the case of knots or rapid working.
Top 21 Cutter
SMS: Step Memory System for easy joining of laterally off-set workpieces.
