Description
- Chamfers tooth forms Aw, Bw or C in one revolution
- Wheel moves rapidly into grinding position and then slows for the actual grind resulting in faster grinding times and quality finishes
- Automatic shutdown upon completion of cycle
- Easy set-up of clearance angles
- For saw blades from 120 to 650mm (4.75 to 25 .5”)

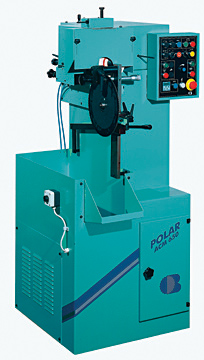

Rekord Polar Chamfer Grinder
Standard Machine includes
- Manual grinding wheel dressing device
- One Resinoid Grinding Wheel
- Set of bushings for 12mm shaft: 1”, 22, 27, 32, 38, 40 & 50mm
Polar Optional Accessories
- Low voltage halogen target light
- Fully recirculating coolant system
- Circular saw centering collars: up to 1-1/4”& 32mm , for 12 mm shaft: 45, 60, 80mm
Blade Diameters: 120-650mm
Grinding Motor: 1 HP
Maximum Blade Thickness: 8mm
Maximum Tooth Pitch from Aw & Bw: 30mm
Maximum Tooth Pitch from C: 16mm
Grinding Wheel Specs: 150mm x 32mm
Grinding Wheel Speed: 3500 rpm
Indexing Speed: 40-70 teeth/min.
Air Requirements: 6 Bar at 10 liters/min
Voltage: 220/400V, 3Ph, 60Hz
Shipping Weight: 300 kg (660 lbs.)
Grinding Motor: 1 HP
Maximum Blade Thickness: 8mm
Maximum Tooth Pitch from Aw & Bw: 30mm
Maximum Tooth Pitch from C: 16mm
Grinding Wheel Specs: 150mm x 32mm
Grinding Wheel Speed: 3500 rpm
Indexing Speed: 40-70 teeth/min.
Air Requirements: 6 Bar at 10 liters/min
Voltage: 220/400V, 3Ph, 60Hz
Shipping Weight: 300 kg (660 lbs.)
