Description

  • Grinds alternating chip breaker slots in single pass (notch grinding)
  • PLC controlled
  • Automatic shutdown upon completion of cycle
  • High Frequency air cooled electro-spindle allows for Variable grinding wheel speeds from 0- 50,000 rpm
  • For slot grinding of HSS, Carbide or cermet tips

Request Info & Pricing

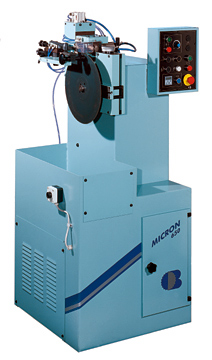

Rekord Micron Slot Grinder

Automatic chip breaker slot grinder for HSS circular saw blades.

Standard Machine includes:

  • Saw blade support for saws 140–630mm (5.5 to 25”)
  • Set of bushings for 12mm shaft: 1”, 32, 40 & 50mm
  • 1 CBN grinding wheel 30mm x .4 x 2mm bore
Rekord Micron
Micron Optional Accessories
  • Low voltage halogen target light
  • Fully recirculating coolant system
  • Clamping Fixture for circular saw blades from 70mm – 140mm (2.75” – 5.5”)
  • Circular saw centering collars: up to 1-1/4”& 32mm
  • 45, 60, 80mm
Blade Diameters: 140-630mm (70mm option)
Grinding Motor: 1/2 HP
Maximum Blade Thickness: 8mm
Maximum Tooth Pitch: 18mm
Grinding Wheel Diameters: 15, 25, 30mm
Grinding Wheel Thickness: 0.4mm- 0.6mm
Grinding Wheel Speed: 0 – 50,000 rpm
Grinding Speed: 40 teeth/min
Air Requirements: 6 Bar at 20 liters/min
Voltage: 220v, single phase
Shipping Weight: 275kg (605lbs)
