Compact Parts

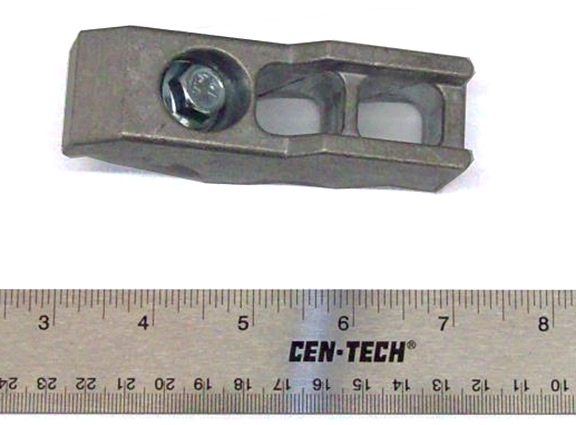

Item#100.217 – Aluminum Support Finger for Compact after 2004 – $29.00

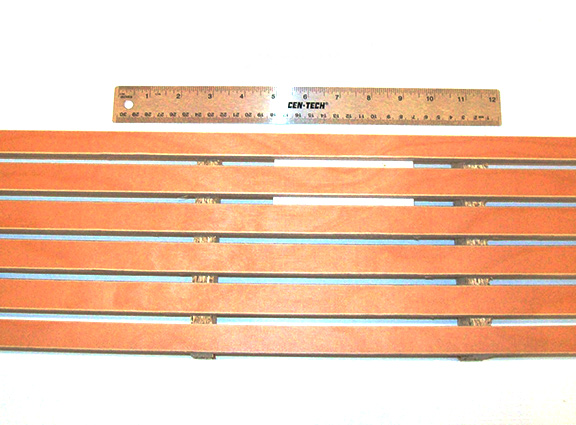

Item#100.210 – Wood Support Panel, Compact 04/Std. TRK. 156.5 x 1011 mm – $200.00

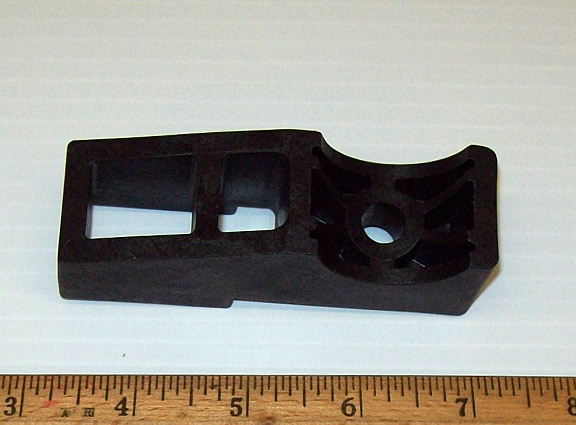

Item#100.066 – Support Finger for 1999-2004 Compact TRK (Plastic) – $15.00

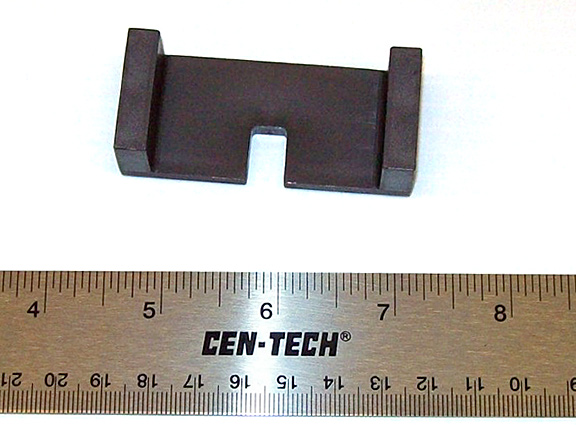

Item#102.069 – Extraction Hood (blade guard) Guide for Compact (Two Required) – $13.00

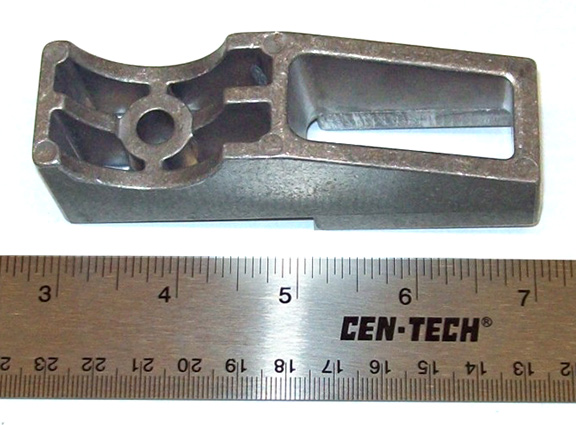

Item#100.071 – Aluminum Support Finger for 1999-2004 Compact TRK -$26.00

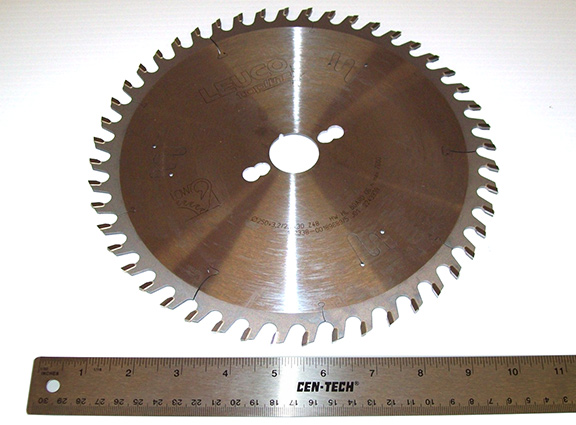

Item#SB-189689 (Alt. Part#024.206) – Saw Blade, 250mm., 48T, Hollow Face for Melamines for Compact – $135.00

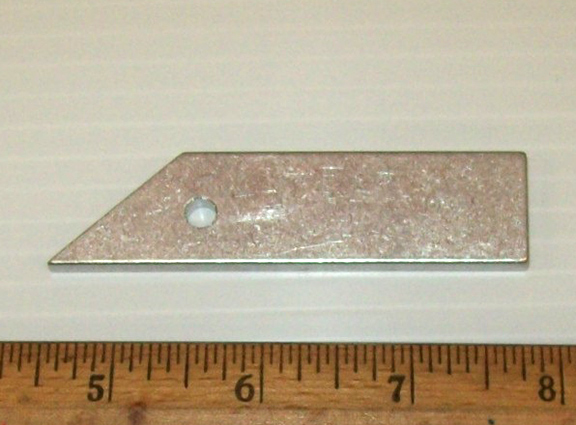

Item#100.043 – Panel Stop Flap for all Compacts – Mounts on last center shelf finger – $20.00

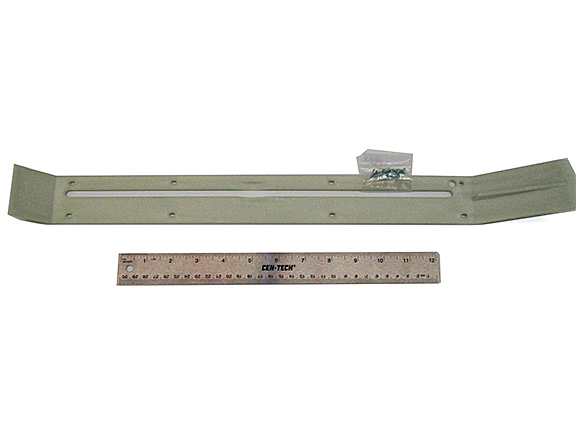

Item#102.070 – Plastic Nylon Shoe (blade guard) for Compact – $54.00

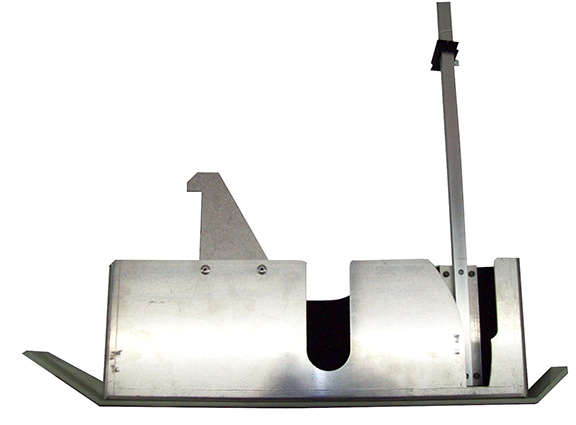

Item#102.812 – Dust Shroud Complete (blade guard) for Compact – $575.00

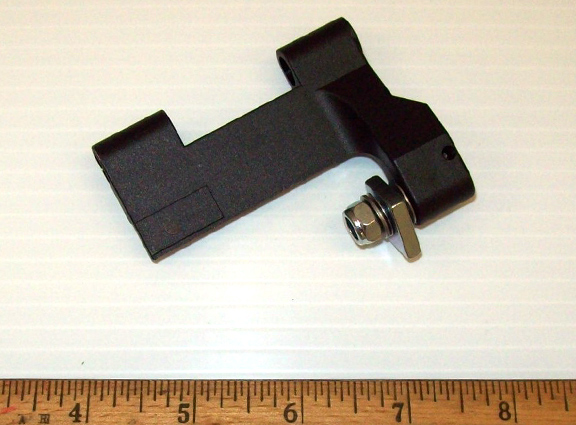

Item#105.861 – Subassembly of Modified Elevating Tab for Compact- $60.00

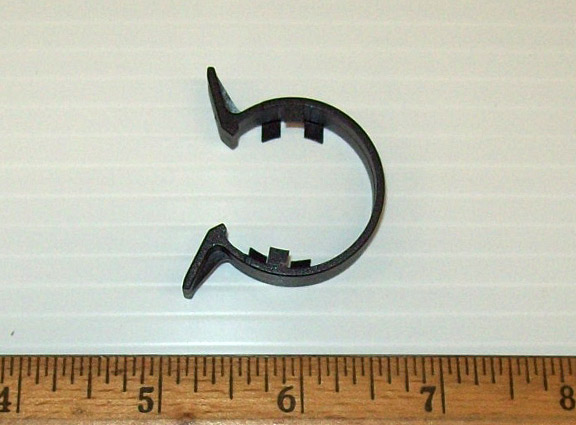

Item#002.422 – Small Plastic Dust Cover/Wiper-Top Beam for post-2005 Compact (For 30 x 10 mm bearing) – $12.00

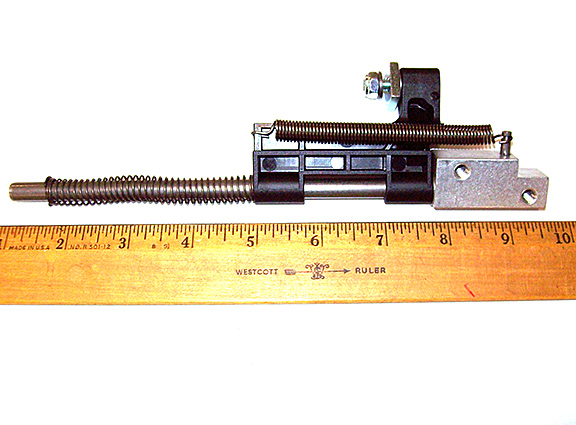

Item#105.862 – Modified Elevating Tab System Complete for Compact prior to 2011. Evolution and Control – $160.00

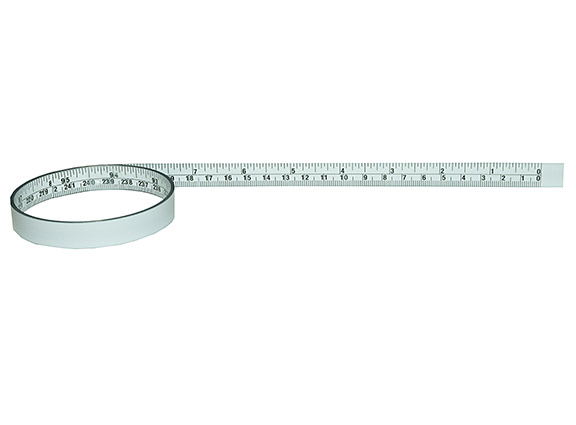

Item # 023.145 – Tape Measure inch/mm R-L 2410mm – 13 x 2410 mm. Reads Right-to-Left, for LEFT Side of Measuring Channel. – $53.00

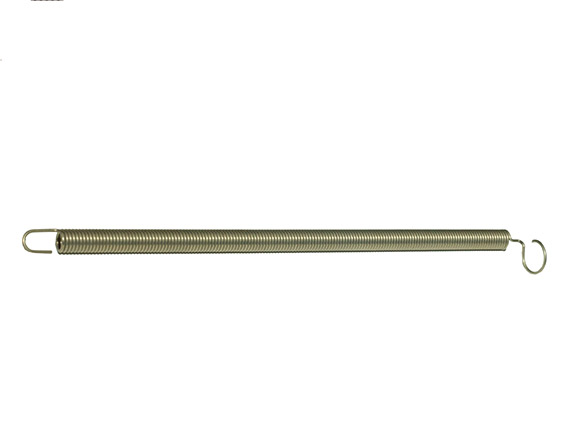

Item #102.258 – Spring for Compact Dust Shrouds – $14.00

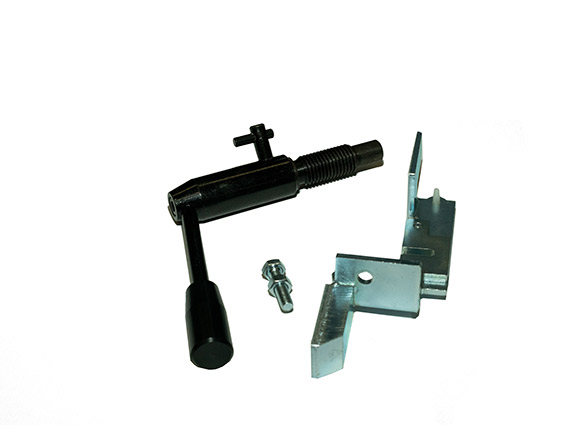

Item #102.876 – New Locking Lever Assembly for Compact – Required if Original Handle is Broken (Conversion kit) – $250.00

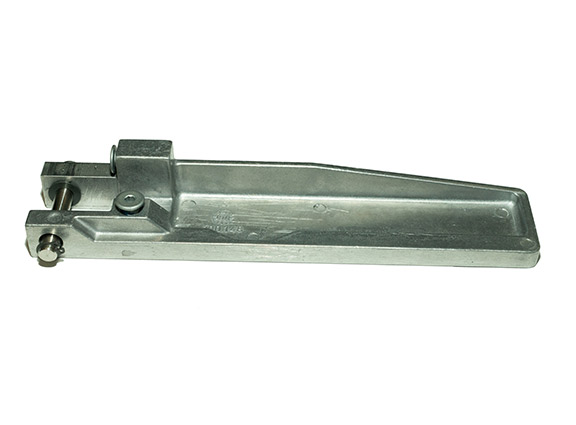

Item # 100.853 – Measuring Flip Stop Extension – Fitted with Pin and Snap Ring – $145.00

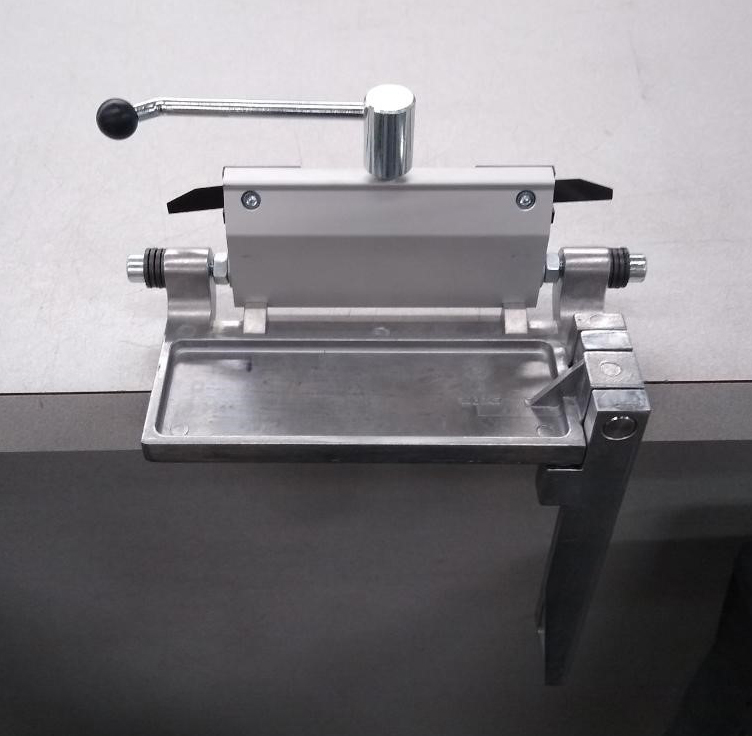

Item #100.831 – Longitudinal Stop Assembly Complete – Compact – $495.00

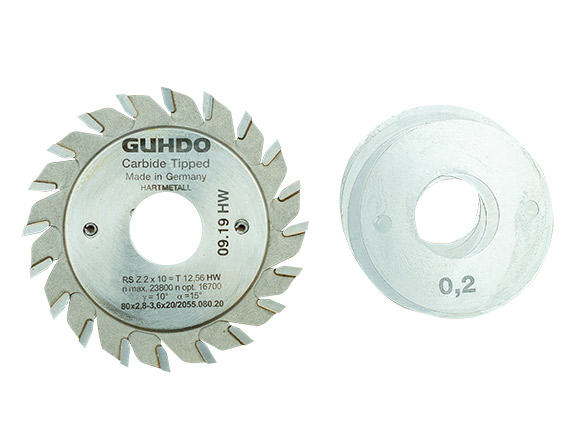

Item # 024.210 – Standard Scoring Blade Set with Shims for Compact, Standard S, Evolution, Control – $335.00

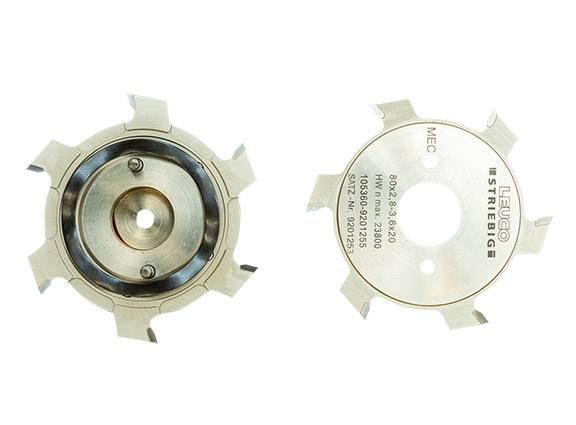

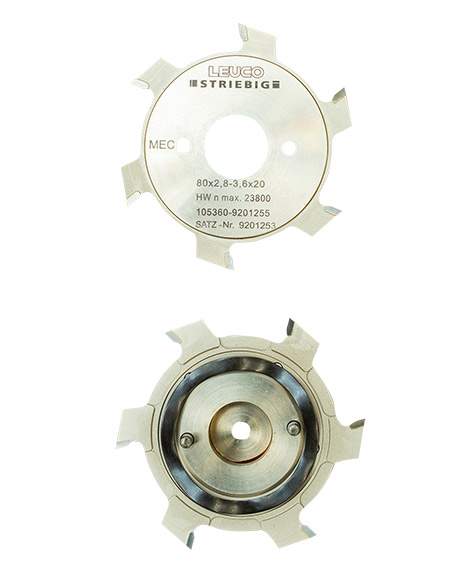

Item #024.812 – Adjustable Scoring Blade Assembly for Compact, Standard S, Evolution, Control – $595.00
Standard Optisaw Parts

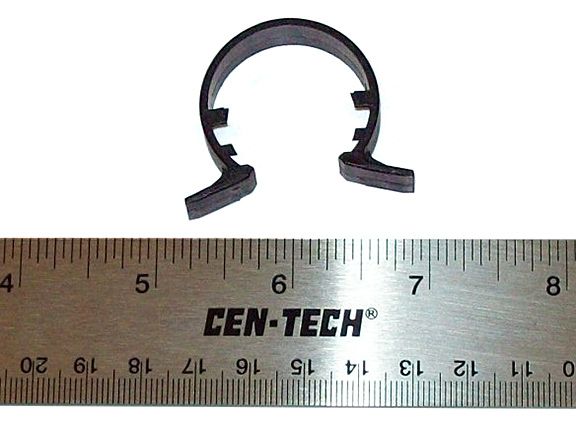

Item#91-02-30500-10 (Alt. Part#002.160) – Small Dust Cover for 30 x 11 mm bearing. Black Plastic, for Optisaws – $11.00

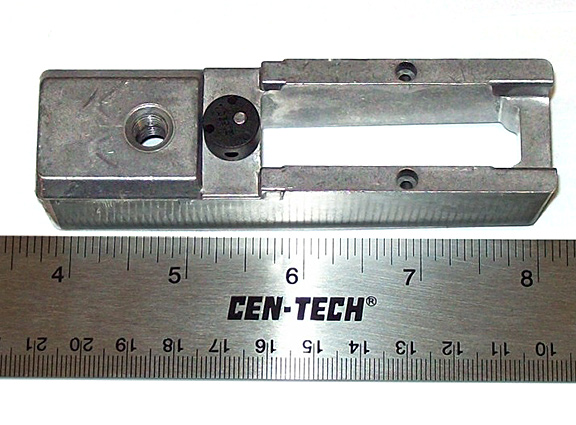

Item#91-01-33900-10 (Alt. Part#001.015) – Center Shelf Support Finger for 1992-2005 Optisaws – $27.00

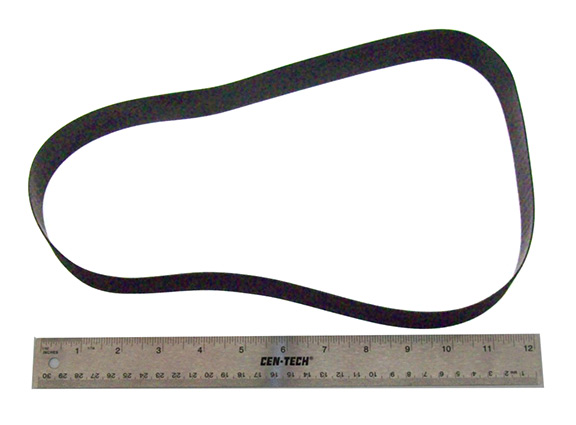

Item#003.185-A (Alt. Part#68-03-419-10B) – 60 HZ Flat Drive Belt (Domestic) for Optisaws. 825 x 35 mm – $49.00

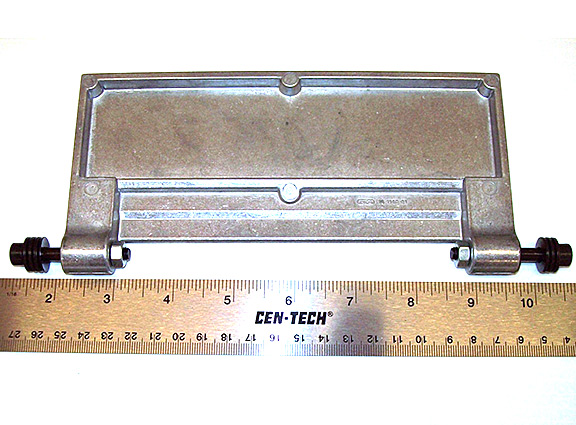

Item#91-01-30000-10 (Alt. Part#001.104) – Stop Plate Only for Optisaws – $95.00

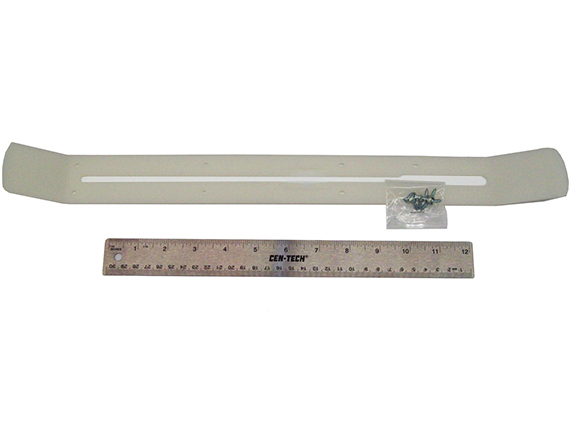

Item#68-03-428-10 (Alt. Part#003.168)- Nylon Shoe for Dust Shroud (Plastic blade guard) for Optisaws – $54.00

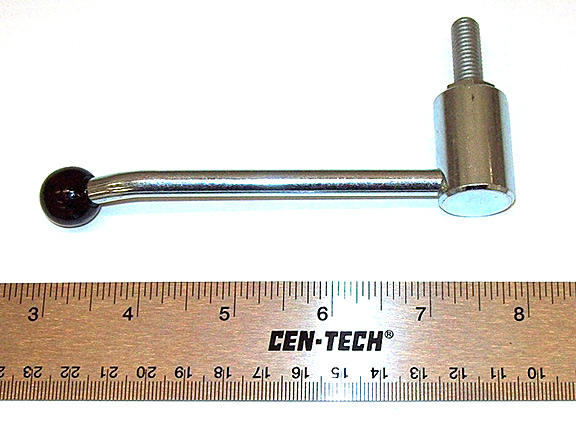

Item#91-01-30800-10 (Alt. Part#001.168) – Clamp Lever Handle M8 x 20 (Chrome), for Optisaws (post-1991) – $45.00

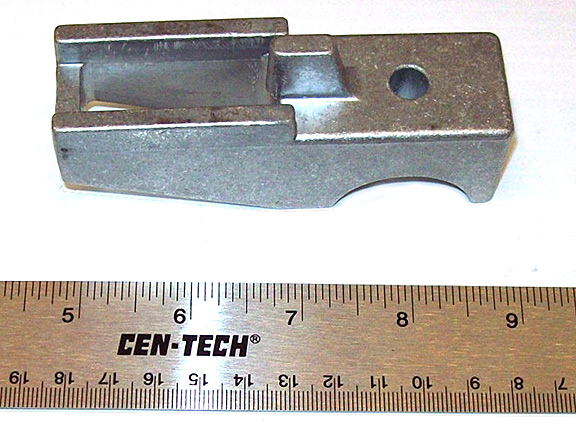

Item#68-01-318-10 (Alt. Part#015.004) – Support Finger Old Style for Optisaws (pre-1991) – $25.00

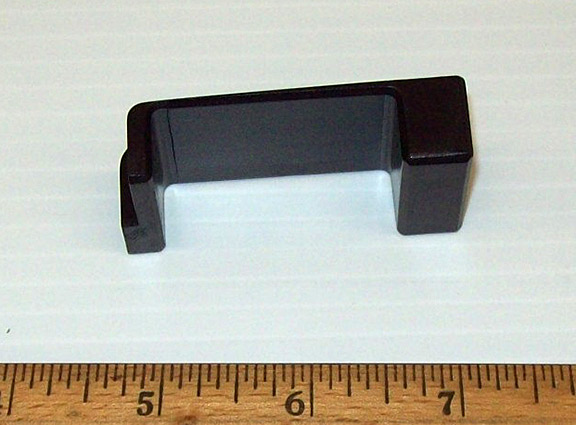

Item#68-03-435-12 (Alt. Part#990.659) – Set of 2 Guide Blocks for Shroud (blade guard) for Optisaws- $36.00

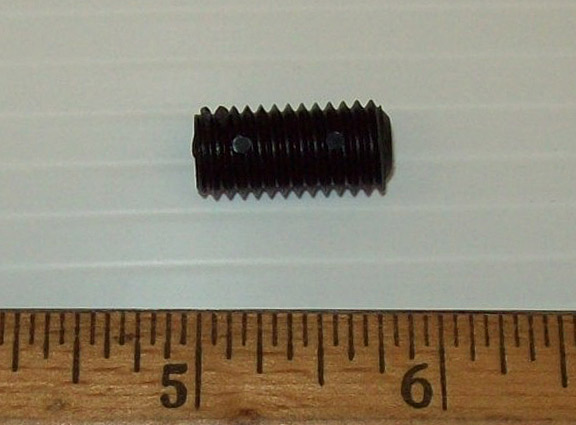

Item#68-03-372-10 (Alt. Part#003.163) – M10 x 20 Plastic Screw for Parallel Guide for Optisaws – $8.00

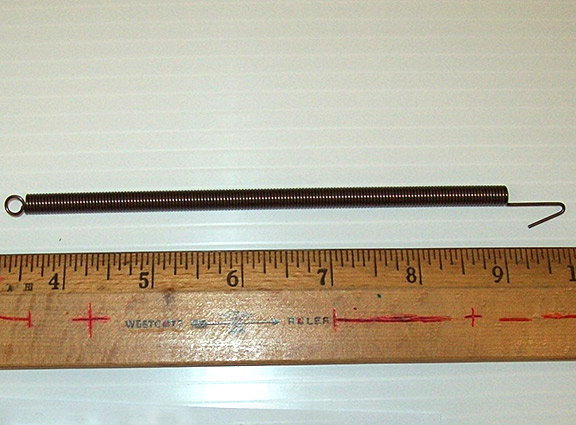

Item#68-03-427-10 (Alt. Part#003.167) – Spring for Dust Shroud for Optisaws- $20.00

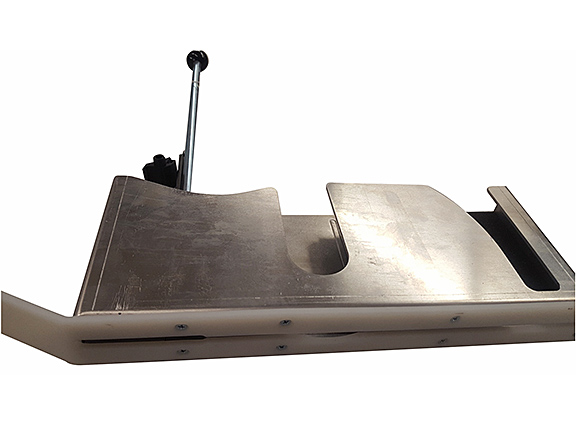

Item#68-03-104-13 (Alt. Part#003.802) – Shroud Complete All Econ, Standards, and Automats for Optisaws – $450.00

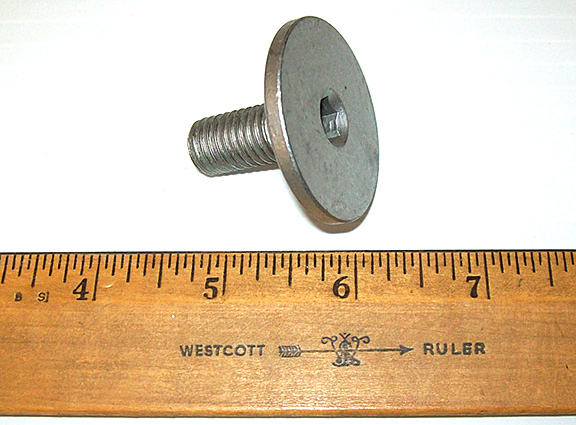

Item#68-03-413-12 (Alt. Part#003.181) – Socket Head Screw for Sawblade for Optisaws – $45.00

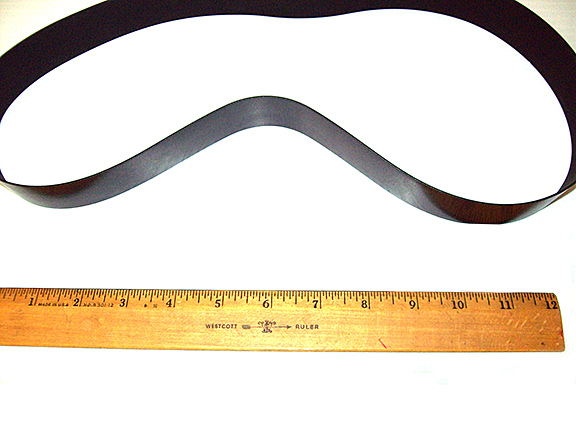

Item#68-03-419-10 (Alt. Part#003.185)- Flat Drive Belt 60Hz Opti 1 & 2, Std TRK (825 x 35 mm) for Optisaws – $110.00

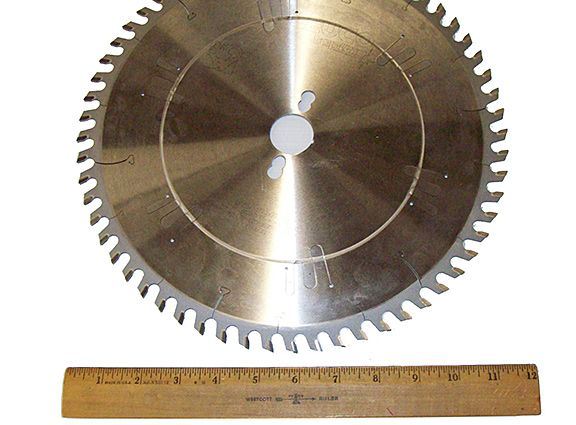

Item#SB-193335 (alternate 189690) – Saw Blade, 303mm, 60T, Hollow Face for Melamines for Optisaws – $185.00

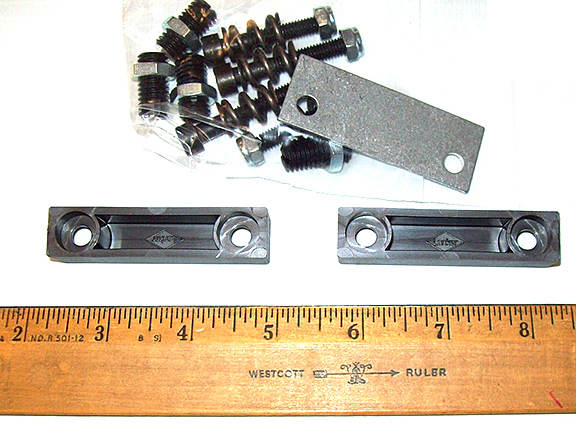

Item#68-03-109-10 (Alt. Part#990.497) – Parallel Guide Set (Vertical and Horizontal) for Optisaws- $200.00

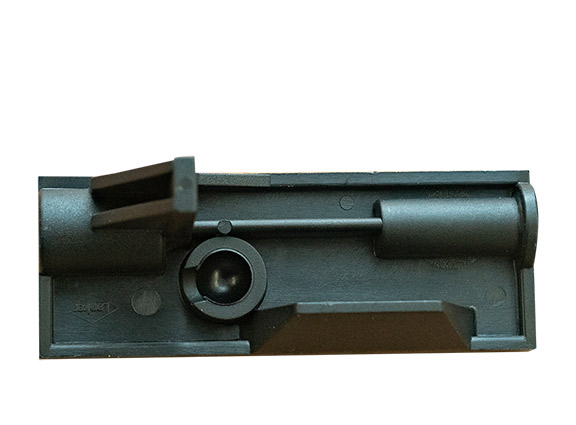

Item # 68-03-325-11 – Sliding Piece of Grid Deflector – $65.00

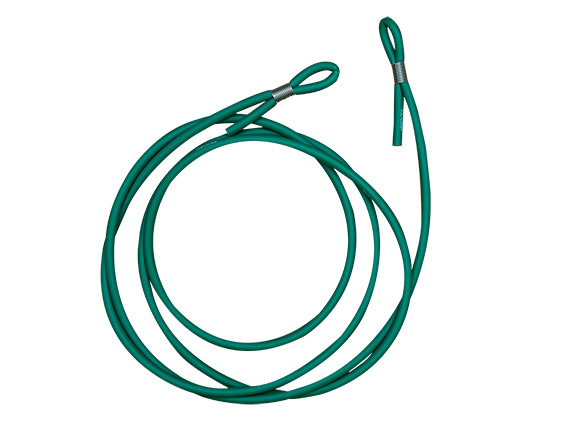

Item # 68-04-319-10 – Green Elastic Band for Rear Dust Hose Systems with 3 Wheels (5m length) – $55.00

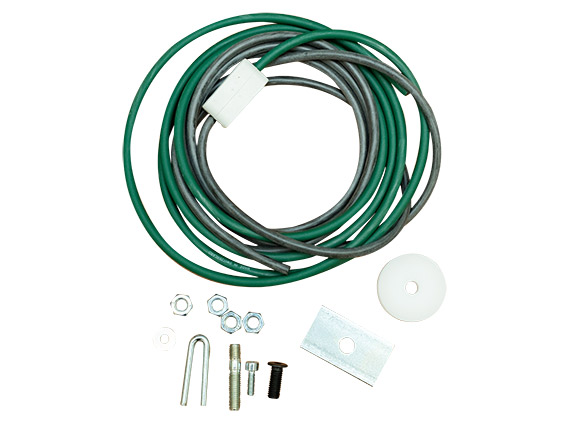

Item # 68-02-107-10 – Saw Lifting Assembly on Right Side of Beam including Green and Black Elastics, plus Hardware – $195.00
Parts that work on both Compact & Optisaws

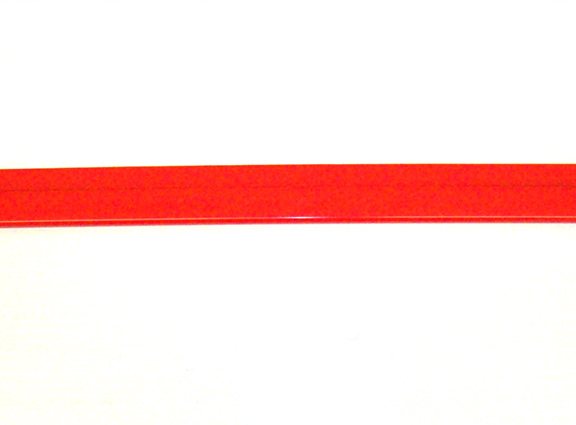

Item#100.113 – Red plastic lath strip for support grid- 4940mm (16’2″) for all 5-meter machines and shorter (Customer can cut to any shorter length) – $46.00

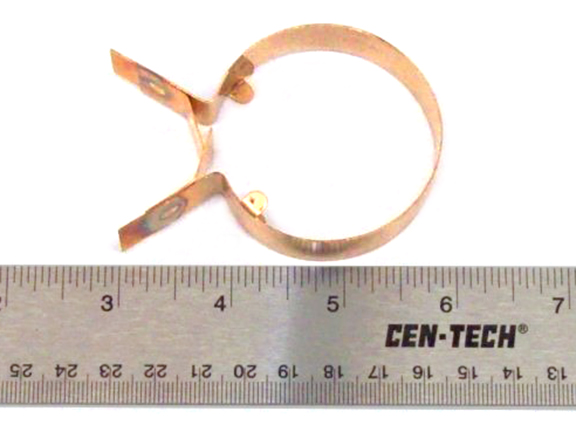

Item#002.260 – Large Copper Dust Cover for Saw Beam for 52 x 15 mm bearing for Optisaws and Compact – $19.00
Item#68-03-331-11 (Alt. Part#003.135) – Small Copper Dust Cover/wiper for 32 x 12 mm bearing – $12.00

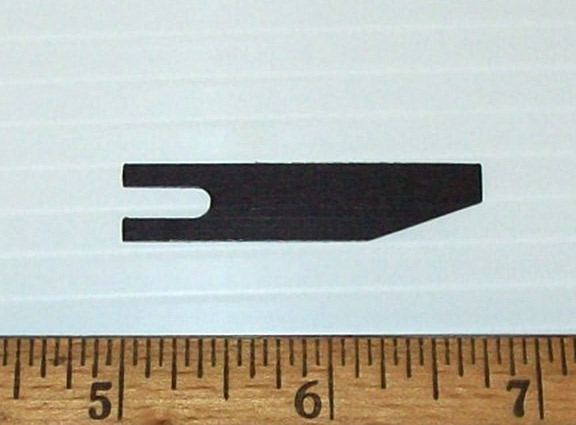

Item#68-01-327-10 (Alt. Part#041.014) – Pointer (Finger), for stop flaps. Left or Right, for Optisaws and Compact – $4.00

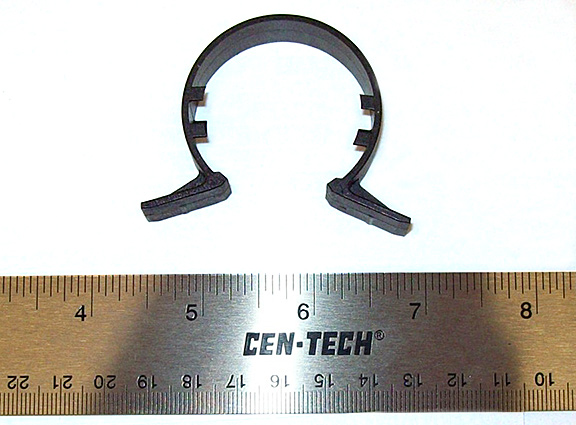

Item#91-02-30600-10 (Alt. Part#002.162) – Large Dust Cover for 42 x 15 mm bearing. Black Plastic for Optisaws and Compact- $11.00

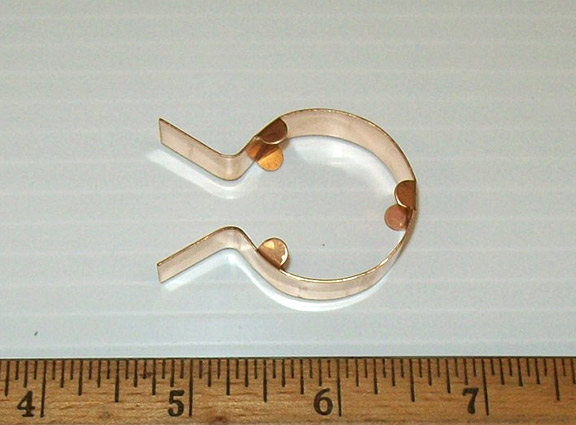

Item#003.136 – Copper Dust Cover/wiper for 37 x 13.5 mm bearing for Optisaws and Compact -$12.00

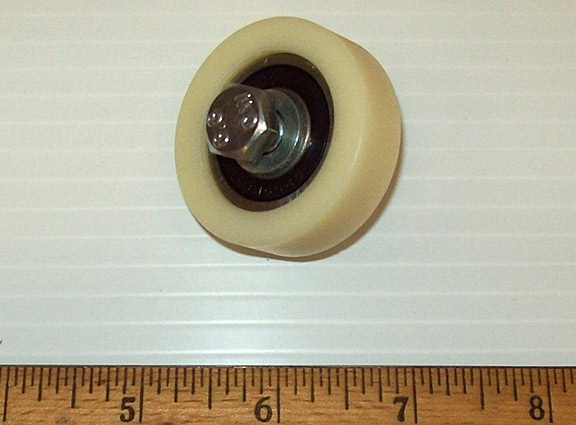

Item#91-02-30900-10 (Alt. Part#002.814) – Roller for Bottom Beam, all models. For Optisaws and Compact- $39.00

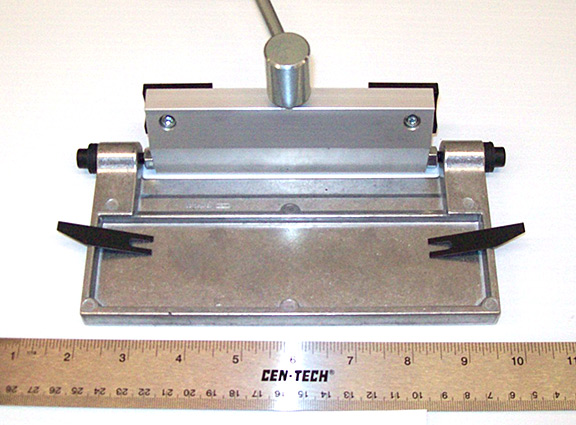

Item#91-01-10600-10 – Stop Complete with Fingers, New Type. For 6/91 – current Optisaws and Compact – $395.00

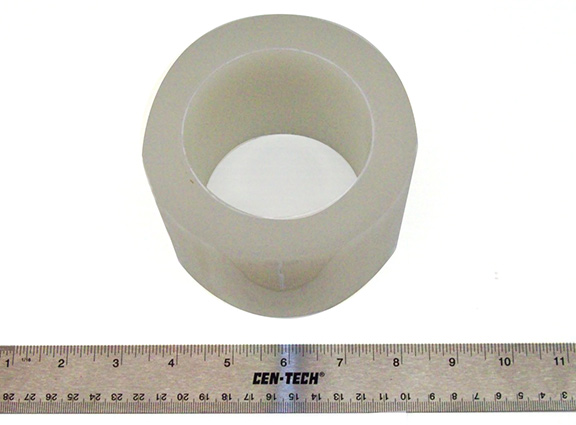

Item#STR-SS-007A – V-Grooving Tape 3-inch x 36 yards for Optisaws and Compact- $15.00

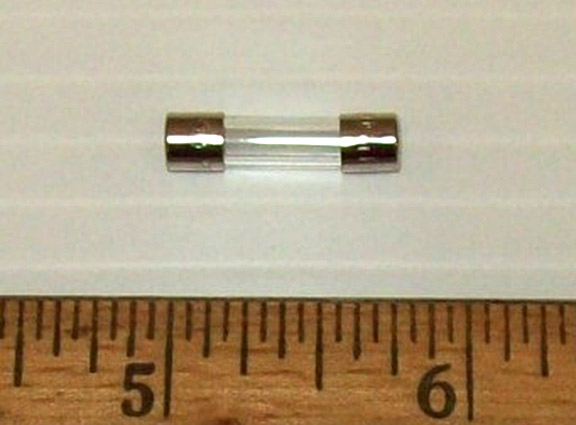

Item#68-05-316-11 (Alt. Part#047.811) – Fuse 0.63 AMP, 250 v, 5 x 20mm, for Optisaws and Compact – $1.00
