Standard Machine Includes:
- Cabin enclosure with thru feed of bands
- Bandsaw holding assemblies
- Heavy flood coolant system
- Dual high intensity, watersealed machine lights
- TI programmable controls
- Grinding load monitors with adjustable over-draw controls
- Keyed, resettable tooth counters
- Dual function CNC-style machine monitoring light, monitoring end of cycle and cumulative tip count for control of maintenance periods

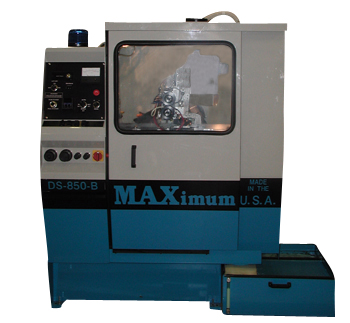

MAXimum DS850-B
Automatic Side Carbide Tipped Band Saw Grinder
Automatic Side Carbide Tipped Band Saw Grinder
Bandsaw widths: 3/4” to 4”
Minimum tooth pitch: 5 T.P.I.
Maximum tooth pitch: 2.5”
Radial Clearance Angles: from 0 to 2.5 degrees
Tangential Clearance Angles: from 0 to +3 degrees
Grinding Wheel Diameter: 4"
Electrical requirements: 230 or 460 volt, 3 PH, 60 HZ
Pneumatic requirements: 110 PSI, 4 CFM
Production capacity: up to 18 TPM given 1 grind per tip
Minimum tooth pitch: 5 T.P.I.
Maximum tooth pitch: 2.5”
Radial Clearance Angles: from 0 to 2.5 degrees
Tangential Clearance Angles: from 0 to +3 degrees
Grinding Wheel Diameter: 4"
Electrical requirements: 230 or 460 volt, 3 PH, 60 HZ
Pneumatic requirements: 110 PSI, 4 CFM
Production capacity: up to 18 TPM given 1 grind per tip
Additional Configurations
Optional Accessories
Note: All inclusive, excepting uncoiler/recoiler and grinding wheels.
- Automatic central lubrication system
- Automatic infeed system with stepper motor control
- 4 precision height blocks for 3/4, 1, 1-1/4, 1-1/2” band width
Optional Accessories
Note: All inclusive, excepting uncoiler/recoiler and grinding wheels.

Close Up of DS850-B
