Standard Machine Includes:
- Cabin enclosure with thru feed of bands
- Bandsaw holding assemblies
- Heavy flood coolant system
- Dual high intensity, watersealed machine lights
- TI programmable controls
- Grinding load monitors with adjustable over-draw controls
- Keyed, resettable tooth counters
- Dual function CNC-style machine monitoring light, monitoring end of cycle and cumulative tip count for control of maintenance periods

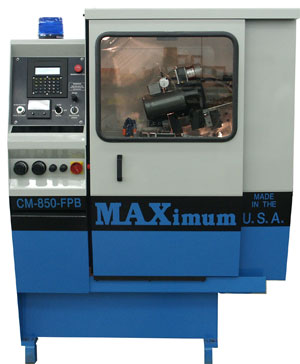

MAXimum CM850-B
Automatic Double Chamfer Band Saw Grinder
Automatic Double Chamfer Band Saw Grinder
Bandsaw widths: 3/4” to 4”
Minimum tooth pitch: 5 T.P.I.
Maximum tooth pitch: 2.5”
Chamfer Angle: 45 (other angles by OEM order only)
Electrical requirements: 230 or 460 volt, 3 PH, 60 HZ
Pneumatic requirements: 110 PSI, 4 CFM
Production capacity: up to 18 TPM
Minimum tooth pitch: 5 T.P.I.
Maximum tooth pitch: 2.5”
Chamfer Angle: 45 (other angles by OEM order only)
Electrical requirements: 230 or 460 volt, 3 PH, 60 HZ
Pneumatic requirements: 110 PSI, 4 CFM
Production capacity: up to 18 TPM
Additional Configurations
Note: All inclusive, excepting uncoiler/recoiler and grinding wheels.
- Automatic central lubrication system
- Automatic infeed system with stepper motor control
- 4 precision height blocks for 3/4, 1, 1-1/4, 1-1/2” band width
Note: All inclusive, excepting uncoiler/recoiler and grinding wheels.
Close Up of CM850-B
