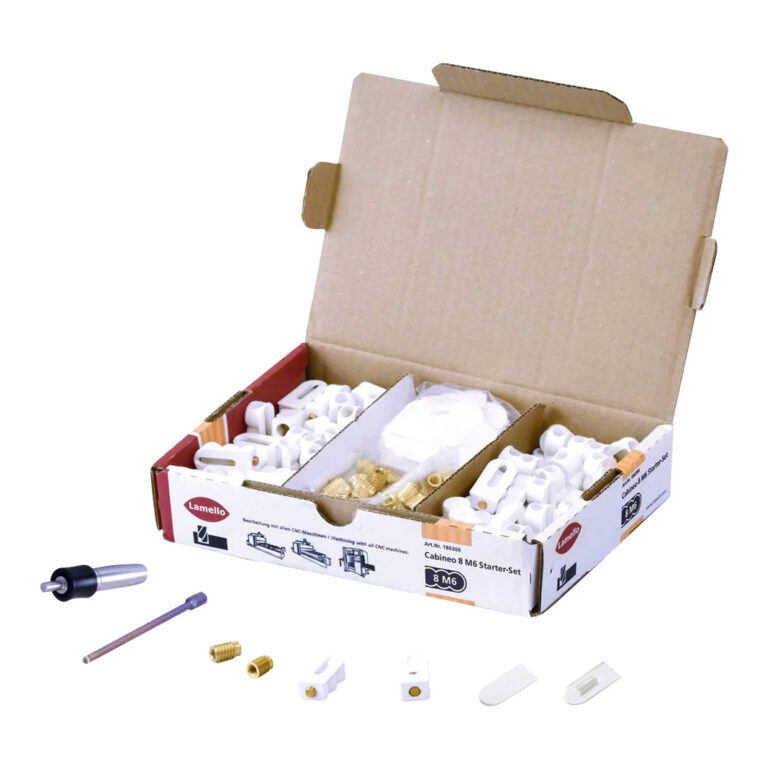

Cabineo 8 M6

Repeat-usage resistance or use to join phenolic resin material or wood panels-to-metal components

Time-saving cabinet connector works without edge drilling and with very high clamping force

  • Efficient machining with all CNC machines
  • Faster machining & assembly
  • Stronger connections

$225.00

Secure Online Ordering for U.S. Only - No order is processed until the final checkout.

Product Details

Description

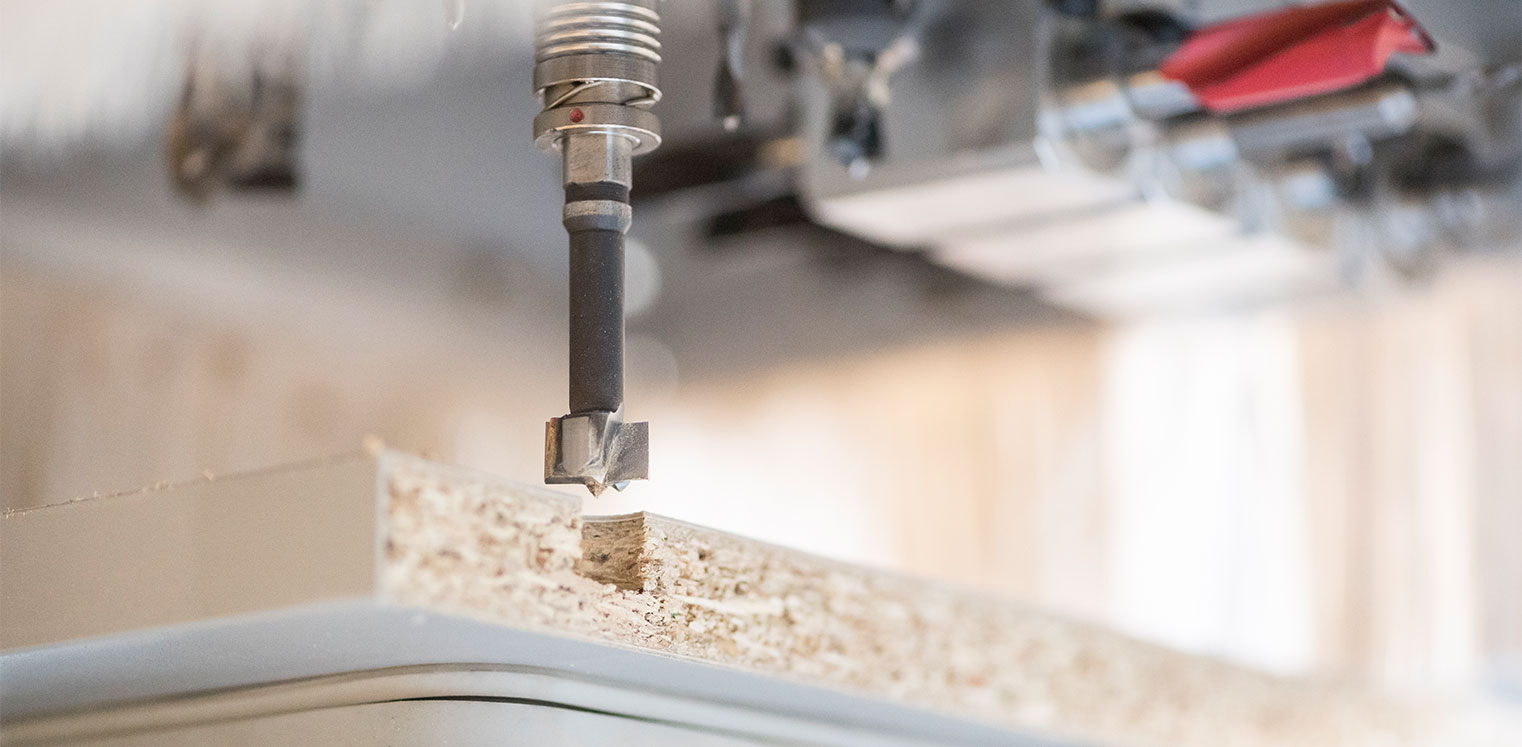

Cabineo is the newest connector from Lamello, and is an outstanding solution for cabinet shops and manufacturers using nested-based CNC routers. The toolpath may be quickly machined with a standard, straight-shank router bit without a tool change. The Cabineo connectors are simply tapped into the routed pocket and join cabinet components together by screwing into a mating 5mm shelf pin hole with nearly 200 pounds of clamping force. Cabineo may be covered with aesthetic cover caps, or parts may be inverted to allow for a completely invisible application. Because there is no pin or stud required with Cabineo, all components may be shipped to the jobsite as a true flat-pack, RTA solution. The M6 version of the Cabineo connector uses a metal helical insert or may be fastened directly into a tapped hole in metal furniture or fixture components.

More Advantages

  • Installation of fixed shelves or vertical dividers in an already assembled unit
  • Detachable for transport or if the fixed shelves need adjusting
  • Shallow element of 10 mm allows for panels from 12 mm thickness
  • Corner joints with Cabineo 12 (drill hole Ø 5 × 12 mm)
  • Dividing panel joints with Cabineo 8 (drill hole Ø 5 × 8 mm) from material thickness 16mm

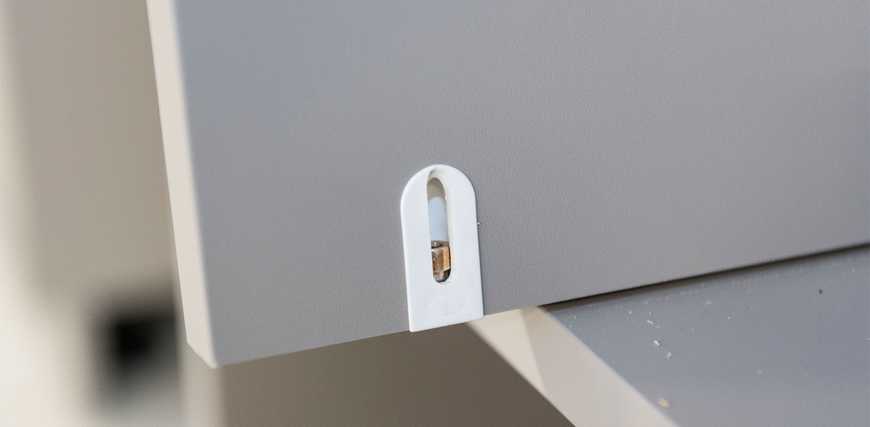

  • Use with or without cover caps. Cover caps are available in various colors

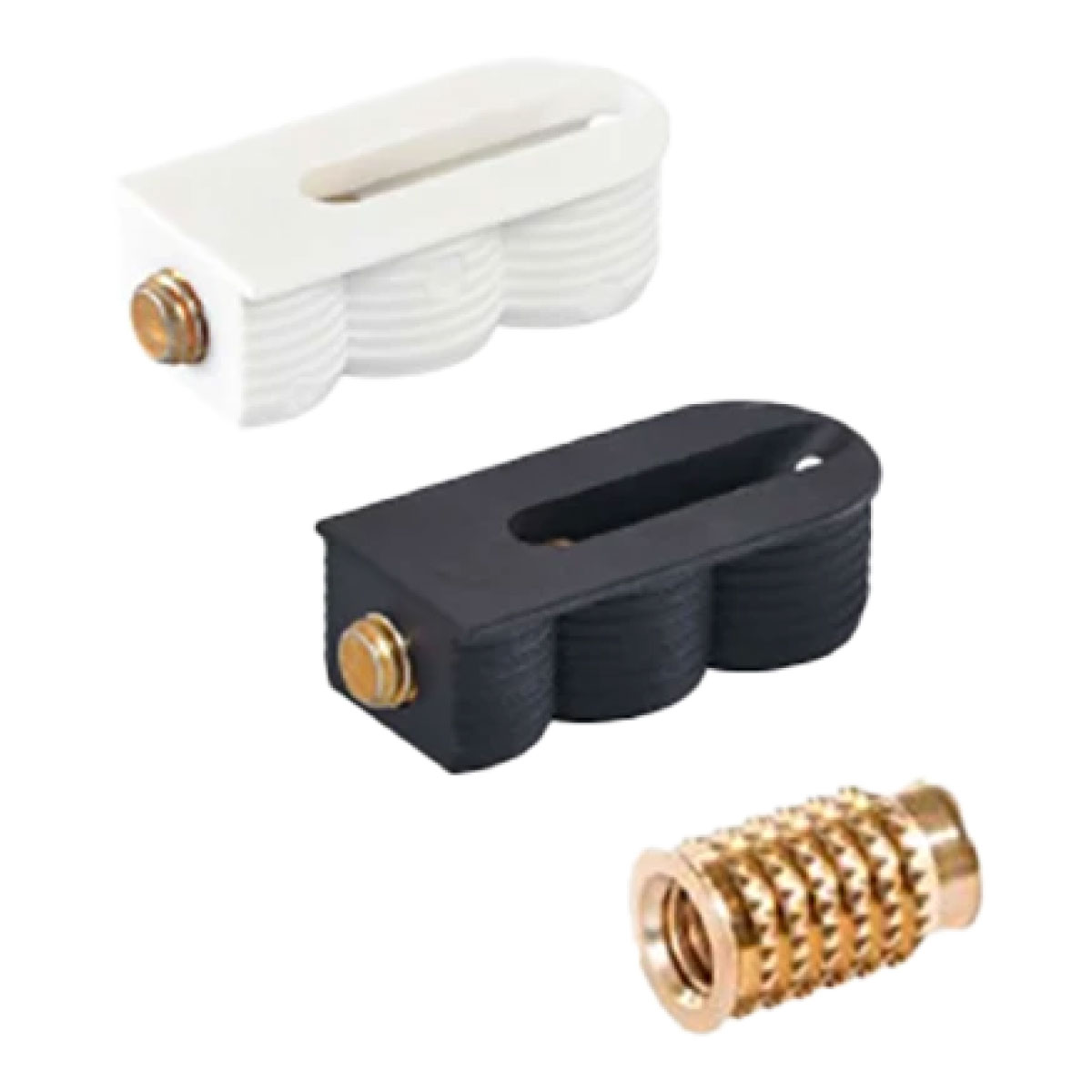

  • Metal insert threaded version available for exceptionally strong connections or for wood-to-metal component connections
