UT.MA AF801
CNC Automatic Dual Side Grinder
CNC programmable double-side grinder with 3-axis CNC controlled grinding, AC servo motors, interpolation for straight and form or profile grinding, automatic electronic indexing system, hydraulic saw blade clamping & saw carrier locking, plus menu-driven programming with memory for fast setup.
Product Details
Description
- 5 Axis CNC controlled grinding with AC servo motors
- 3 Axis Interpolation for straight and form or profile side grinding

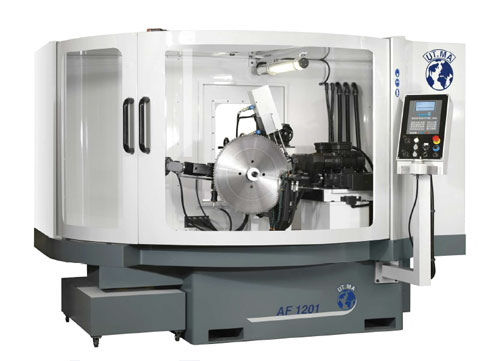

- AF1201 version adds motorized blade infeed and hook Angle adjustment

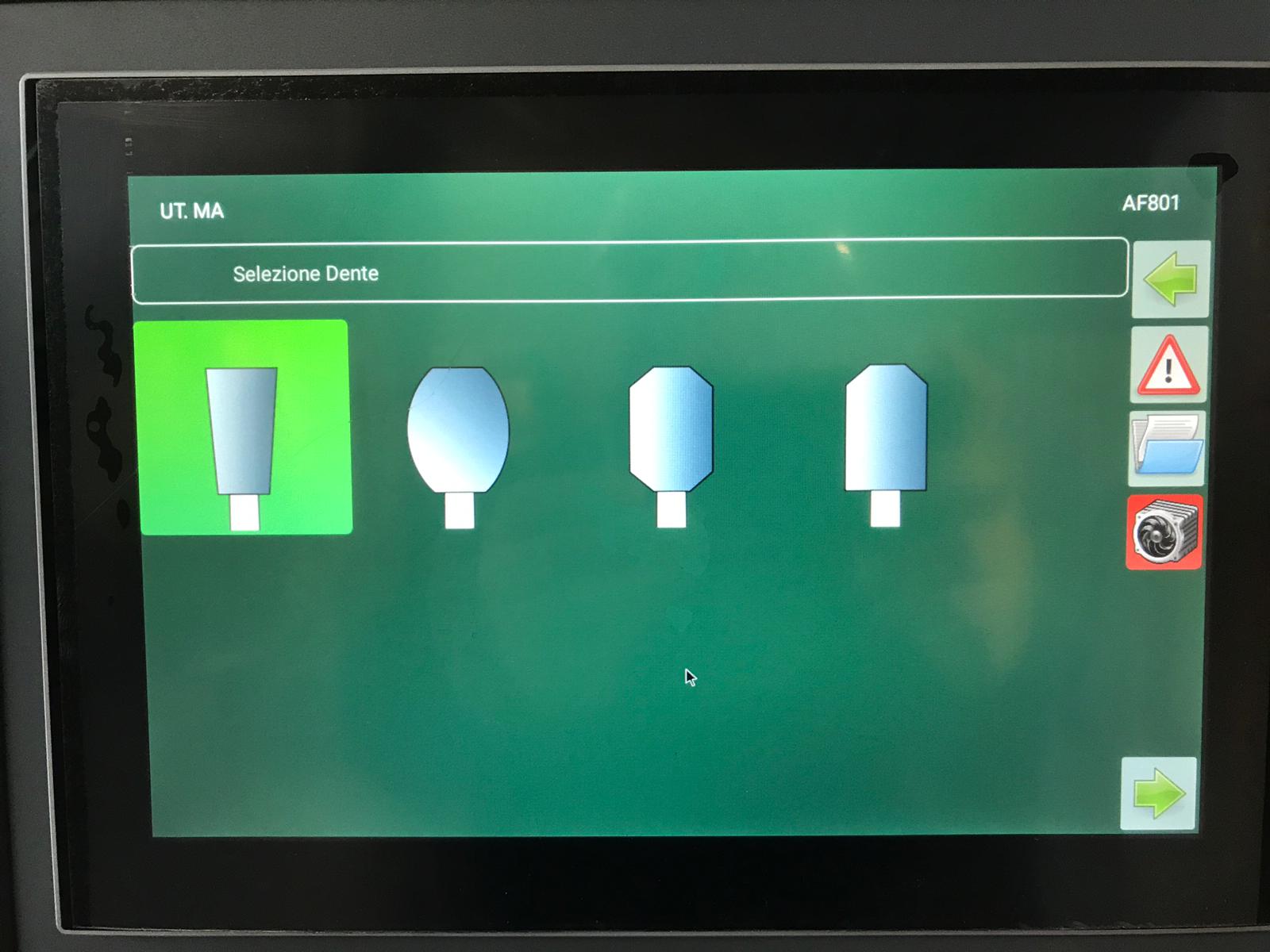

- PC Based touchscreen controller with USB & memory saves unlimited programs
- Electronic hand wheel for micro adjustment to simplify setup
- Automatic electronic indexing system
- Hydraulic saw blade clamping & saw carrier locking
- Full cabin enclosure is oil coolant ready

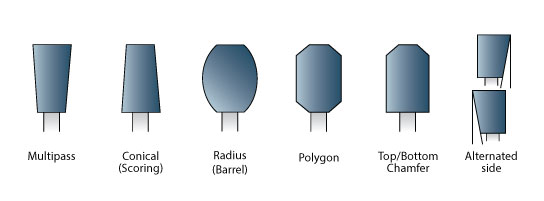

Standard Program Capability:
- No lift-off, straight up/down
- Lift-off, move away at bottom of tip
- Reverse lift-off, infeed at bottom of tip
- Multi-pass with micro infeed (thin kerf)
- Conical grind (scoring saws)

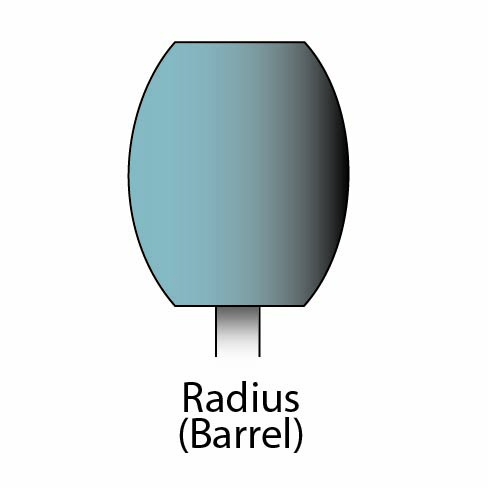

- Radius & Polygon grind (barrel grind)
- Top/bottom chamfer grind
- Alternated side grind (ex. Alternating flush to plate)
- Cutters (ex. groovers, shapers)
