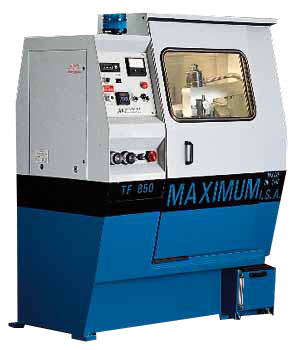

MAXimum TF850-SP Fully Automatic Top & Face Grinder with Standard Program

Standard Machine includes

  • 10 GPM flood coolant system with filter paper
  • Precision saw lift
  • Stainless steel shields
  • Dual low voltage machine lamps
  • Tooth Counter
  • Magnetic saw receiver for saw blades with bore sizes (0.5-1.5”)
  • Set of saw bushings (1/2, 5/8, 3/4, 1, 1-1/8, 1-1/4, 1-3/8, 1-1/2”, 30mm)
  • Set of bevel angle bushings (5, 10, 15, 20, 25, 30, 35, & 40 degree)
  • Mag Saw receiver (For Bore sizes 1.6-4.0”, 39-101mm)
  • Mag saw receiver (For Bore sizes 4.1-8”, 102-203mm)
  • Saw bushings (For Bore sizes from 0.5-1.5” 12-38mm)
  • Saw bushings (1.6-3”, 39-76mm)
  • Saw bushings (3.1-5”, 77-127mm)
  • Saw bushings (5.1-8”, 128-203mm)
  • Saw receiver (For Saws with 2-5” diameter)
Blade Diameters: 4 – 34 inch (2 – 40” Option)
Grinding Motor: 2 HP
Maximum Blade Thickness: .75 inch
Grinding wheel Specs: 6” x 1-1/4”
Pneumatic requirements: 100 PSI, 2 CFM
Voltage: 230/460V, 3Ph, 60Hz
Shipping Weight: 2000 lbs
