Four Standard Grinding Programs:
  • No lift-off (grinds on the way in and out)
  • Lift-off (grinds on the way in only)
  • Step in (grinds on the way out only)
  • Combination planer program (double indexes wide gullet)

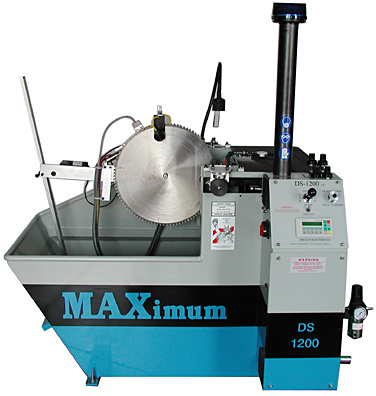

MAXimum DS1200 - Automatic Dual Side Grinder

Standard Machine includes

  • Heavy Flood Coolant system with metal screen
  • Low Voltage Machine Lamp
  • Magnetic saw receiver for saw blades with bore sizes (0.5-1.5”)
  • Set of saw bushings (1/2, 5/8, 3/4, 1, 1-1/8, 1-1/4, 1-3/8, 1-1/2”, 30mm)
  • Cup and cone saw blade holder (for bores from 5/8 to 2.5”)
DS1200 Optional Accessories
  • Full cabin enclosure
  • Small saw option for saw diameters 2 to 6”(50 to 150mm) in automatic operation. *Can be installed after machine delivery
  • Manual small saw option 3.75-6” (95-150mm). *Can be installed after machine delivery.
  • Large saw option 34 to 48” above 10_hook part
  • Large saw option 34 to 48” below 10_hook part (a notch needs to be cut in the machine base for this operation)
  • Conical saw option with fixed stops, max. 6 degrees
  • Conical saw option with scales for setting
  • 3” & 5” Wheel Options. No charge factory only
  • 3” – useful for grinding tight tooth pitches options
  • 5” – useful for grinding non-ferrous blades and blades with thick teeth
Tool Holding
  • Saw bushings (0.5-1.5” 12-38mm)
  • Mag Saw receiver (1.6-4.0”, 39-101mm)
  • Mag saw receiver (4.1-8”, 102-203mm)
  • Saw bushings (1.6-3”, 39-76mm)
  • Saw bushings (3.1-5”, 77-127mm)
  • Saw bushings (5.1-8”, 128-203mm)
Blade Diameters: 4 – 34 inch (2 – 48” option)
Hook Angles: -15 to +45 degrees
Radial Clearance Angles: -6 to +3 degrees
Tangential Clearance Angles: 0 to 4 degrees
Grinding Wheel Diameter: 4” (3” & 5”option)
Pneumatic Requirements: 100 PSI, 2 CFM
Voltage: 230/460V, 3Ph, 60Hz
Shipping Weight: 1,375 lbs
