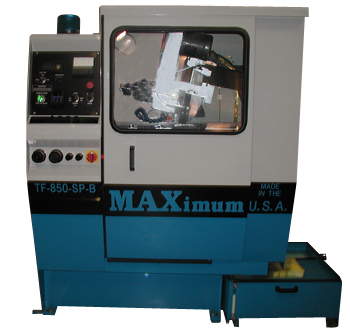

MAXimum TF850-BSP
Automatic Top & Face Carbide Tipped Band Saw Grinder

Bandsaw widths: 3/4” to 4”
Minimum tooth pitch: 0.25” (4 T.P.I.)
Maximum tooth pitch: 2.5"
Minimum top back clearance angle: 15 degrees
Hook angle: -5 to +20 degrees
Electrical requirements: 230 or 460 volt, 3 PH, 60 HZ
Pneumatic requirements: 110 PSI, 4 CFM
Production capacity: up to 18 TPM given 1 grind per tip
  • up to 18 TPM given 1 grind per tip
  • Automatic infeed system with stepper motor control
  • 4 Precision height blocks for 1, 1-1/4, 1-1/2” band width

Note: All inclusive, excepting uncoiler/recoiler and grinding wheels.
